Vertical Conveyor

Efficient and Versatile Vertical Conveyor for Medium-Weight Loads. Safely transport up to 1.5t at speeds of up to 30m/min. Easy-to-use controls with safety features and various detection systems for enhanced protection. Ideal for quick and cost-effective installation.

The KHS Actuator is a medium-sized, vertical, automated conveyor for the manufacturing industry. It can handle a maximum load of 1.5 tons and reach speeds of up to 30m/min. The work can be loaded and unloaded in the same direction (C-type) or in the front and back direction (Z-type).

This product offers a cost-effective and rapid installation solution compared to freight elevators, and it is exempt from building regulations.

Key Features:
– Accident prevention facilities: It can be equipped with a load detection device. The user-friendly control panel includes an emergency button. A buzzer provides alerts and warnings during start-up and in case of abnormalities. Optional signal displays and light indicators allow real-time monitoring of operational, full, and abnormal statuses. The machine is equipped with functions to prevent leaving items in the cabin when stopping (cycle stop) or when the transport level is full (full stop) for continuous conveying.
– Various abnormality detection devices: The machine is equipped with safety devices to forcibly stop the operation and protect the cargo and the machine in case of various abnormalities.
– The specifications of safety devices may vary for pallet conveyance.

Please note that the provided information has been summarized within 100 words.

Introducing the LHT Actuator: A medium-sized, high-speed vertical conveyor for the manufacturing industry. With a maximum load capacity of 1.5t and a top speed of 40m/min, it features a groundbreaking function that allows workpieces to be loaded and unloaded from all directions. Equipped with accident prevention facilities and various abnormality detection devices, this lift is designed to ensure safety and protect both the cargo and the machine.

Introducing the LHT Actuator, a medium-sized vertical automatic conveyor designed for medium-weight and high-speed applications in the manufacturing industry. It is capable of handling a maximum load of 1.5 tons and reaching speeds of up to 40m/min, with a carrier size of up to 4 sqm. Equipped with innovative features, it allows workpieces to be loaded and unloaded from both sides and front and back.

The LHT Actuator is a cost-effective and quick-to-install lifter and vertical conveyor, exempt from building standards regulations. It features accident prevention facilities, such as a load detection device, a user-friendly control panel with an emergency button, audible alerts during startup and in case of abnormalities, and optional signal display and light display for real-time monitoring of operation, full capacity, and faults. Additionally, it incorporates various abnormality detection devices for protecting the cargo and the machine by forcibly stopping it when detecting abnormalities. Different specifications may apply for pallet conveyance.

Please note that the above information is a summary of the product description and safety features of the Actuator LHT.

Efficient and versatile lifting solution with customizable table sizes, dual speed options, and multiple color choices. Compatible with AC200V and AC100V, this hydraulic lift can handle up to 300kg and offers a 600mm stroke for vertical transportation and improved work efficiency.

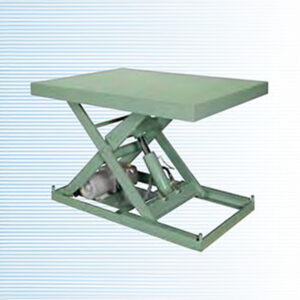

Introducing the MAX-TH THD1-0306A hydraulic lift table, a versatile and efficient piece of equipment for vertical transportation and work optimization. With the ability to choose from three different table sizes and two ascending speeds, this lift table can be tailored to your specific needs. Moreover, it comes in three standard colors to coordinate with other conveyor equipment and can operate on both AC200V and AC100V. Featuring a compact design, this lift table can be used in a variety of settings and has a loading capacity of 300kg and a stroke of 600mm. Opt for the MAX-TH THD1-0306A for a dependable and adaptable hydraulic lift table solution.

A new type of vertical conveyor perfect for simple lifting needs. Absolutely safe lifter with floor-level handling. Exempt from building regulations. Affordable and quick installation for vertical transportation of goods.

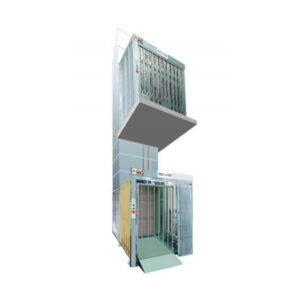

Introducing the “Trailer Lifter TWC,” a new type of vertical conveyor that meets the needs of conventional simple lifts.

This lifter ensures absolute safety as the cargo handling is done on the floor. It falls under the category of vertical conveyors and is exempt from the Building Standards Act. For more information on the regulations for vertical conveyors, please visit the page on legal explanations.

The Trailer Lifter is a vertical conveyor used for the vertical transportation of goods, exempt from the Building Standards Act. It is more cost-effective and can be installed in a shorter timeframe compared to cargo elevators.

TWC | Trailer Lifter

GIF Animation

This is a demonstration of its operation and may differ from the actual model and specifications.

Product Features:
– The ultra-low floor type can be used without a pit, allowing loading with trolleys, cargo carts, and hand lifts.
– Outstanding layout performance with the ability to load and unload in a C or Z shape.
– Equipped with a folding gate on the safety fence outer door for safe usage.
– No need for a machine room like elevators, making installation in existing buildings easy.
– No need for confirmation applications or final inspections, unlike elevators.
– No mandatory inspections, resulting in lower running costs. Regular inspections will be conducted by our company based on the contract.
– Can be widely adapted for the renovation and renewal of existing facilities, such as table lifters.
– We can manufacture products that are suitable for special environments, such as explosion-proof and stainless.

Safe and Affordable Lifters for the Versatile Lifter Market. Achieving half the cost of vertical conveyors and equivalent to simple lifts, our innovative lifters provide safety, peace of mind, and a short delivery time. Standardized operations and reduced lead times make our lifters a game-changer.

Product Title: Trailer Lifter TWK-200/350

Introducing the Trailer Lifter TWK-200/350, a versatile lifter designed with safety and reliability in mind. In the market of vertical transportation, where elevators and vertical conveyors don’t quite fit, there is a demand for a universal solution. Traditionally, simple lifts have been used, but they are often illegal and pose safety risks. That is why we have developed a legal, accident-free, and cost-effective lifter for this universal market.

Key Features:
– Revolutionary Low Price and Short Delivery Time
We have achieved a price point that is half that of vertical conveyors and equivalent to simple lifts. Our lifter offers safety, legal compliance, and affordability, making it a game-changer in the market. We have achieved this by standardizing our processes and reducing lead times, resulting in remarkable delivery speed.

– Trailer Lifter TWK: A Safe Lifter
With the Trailer Lifter TWK, cargo handling is done on the floor, as the tray emerges from the vertical path. By pressing the start switch, the tray automatically moves within the path, ensuring safe and accident-free lifting. Most accidents involving lifters occur due to falls within the vertical path or entrapment between the path and the cargo. Our lifter’s design minimizes these risks.

– Trailer Lifter’s Cycle Flow
The Trailer Lifter TWK comes equipped with safety gates, door locks, and door limits as standard features. This ensures enhanced safety during operation.

Experience the Trailer Lifter TWK today!

Highly efficient and absolutely safe vertical conveyor with improved handling capacity, offering cost-effective and quick installation. Exempt from building regulations, this innovative lift is perfect for various environments and eliminates the need for inspections, reducing running costs.

Introducing the “Tray Lifter TWX,” a product in the manufacturing industry, this innovative vertical conveyor system achieves high transport capacity by circulating trays. Compared to traditional tray lifters, it offers improved transport capability and is completely safe, as it allows for handling of goods on the floor, exempting it from compliance with building regulations. The TWX is a cost-effective and quick-to-install vertical conveyor system that is not subject to building regulations, making it an ideal alternative to cargo elevators. With its unique features, such as the ability to operate without a pit and easy installation in existing buildings, the TWX offers a safe and efficient solution for vertical transportation needs, while also not requiring approval or inspections, resulting in lower running costs. We also provide specialized versions, including explosion-proof, stainless steel, and cold-resistant models, to meet specific environmental requirements.

Improved durability and safety with a wide table design. 1/3 lighter weight, reduced roller wear, and a safety device to prevent accidents. Blade-geared motor for increased efficiency and a wide table for larger items. Dual pole guardrails for exceptional stability.

Introducing the Vertical Conveyor YV-5H, a wide-table type with improved durability and safety features. The machine is one-third lighter than its predecessors, and the adoption of new guide rollers significantly reduces wear and tear. Equipped with a safety device commonly used in home elevators, accidents are prevented. The blade gear motor increases work efficiency, and the wide table can carry large items. With dual-pole guardrails, stability is assured. This vertical conveyor is perfect for manufacturing industries seeking a safe, efficient solution to transport goods.
