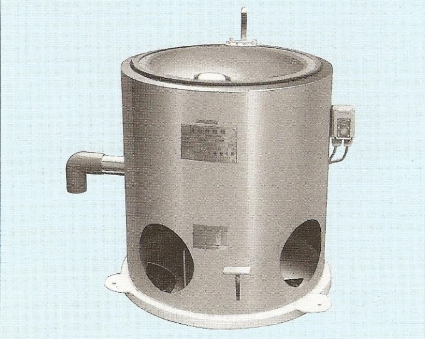

Centrifuge DT-2B double basket type – Daiei Seisakusho Co.
Often used for de-oil recovery of tempura and dregs, and dehydration of vegetable noodles after cutting
Applications
Dehydration of tempura, tempura dregs, dehydration of prepared food period. Dehydration of cabbage and onion, dehydration of kitchen and residue.
Features
This machine is widely used for de-oil recovery of tempura and dregs, and for dehydration of vegetable noodles after cutting.
The take-out basket is made of perforated stainless steel.
The outer body and basket body are made of SUS304 stainless steel, and the wetted parts can be easily disassembled and cleaned.
Options
- Body base: Stainless steel
- Basket bottom back: Stainless steel
- Motor cover
- Operation timer and inverter operation panel
- Lid limit switch
- Middle basket for kakiba tempura
Specification
| Model | 18 | 20 | 22 | 24 |
|---|---|---|---|---|
| Basket Dimensions
Diameter x Depth (mm) |
457×220 | 508×220 | 558×255 | 610×295 |
| Motor
(kW) |
0.75 | 1.5 | 1.5～2.2 | 2.2 |
| Number of Revolutions
(r.p.m) |
1300 | 1300 | 1200 | 1100 |
| Capacity
(ℓ) |
13 | 17 | 26 | 30 |
| Installation dimensions
Width x Length x Height (mm) |
890×910×810 | 920×970×810 | 1040×1050×880 | 1080×1090×940 |
| Weight
(kg) |
106 | 130 | 146 | 220 |
Daiei Seisakusho Co.’s centrifugal potential will make the company thrive.
Daiei Seisakusho Co. began manufacturing and selling industrial centrifuges developed in-house in 1968, and began developing and selling food-related models in 1972.
At the time of development, most metalworking factories used a method of processing and manufacturing metal by using a large amount of oil and a little frictional heat when making screws and other products.
The products and metal scraps were covered with a large amount of oil, and removing the oil was time-consuming, so a centrifugal separator was built to remove the oil from the metal using centrifugal force.
The oil recovered by the separator is reused for products as well as metal scraps, and the absence of oil in the recovery of metal scraps makes the recovery process easier and more advantageous.
At present, centrifugal separators are used for dehydrating and de-oiling vegetables and other items at food processing plants in school lunchrooms, meal centers, major food manufacturers, and major restaurant chains, and for draining cut vegetables and draining oil from fried foods.
For oil draining of fried food, it is not enough to drain 100% of the oil, but we have also developed an operation panel that controls the number of revolutions and time to respond to requests to lower the oil content to 20%, for example.
Other products include automatic egg-cracking machines. This machine separates eggs into shells and contents after washing and disinfecting them, and can process about 1,500 to 2,000 eggs at a time.
The food centrifuge is not only easy to use but also hygienic.
Instead of using a cloth bag or stainless steel mesh for the inner basket, a polyethylene colander basket (utility model registration No. 1974806), which is lightweight and easy to handle, is used to prevent foreign objects from mixing with the ingredients.
We believe that such detailed innovations have led to sales of more than 200 units per year.
