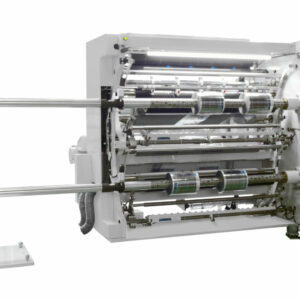

Duplex Center Drive Slitter Rewinder HDF-306V-1300 – HAGIHARA INDUSTRIES INC.
High performance and high function model
Main Use
Battery materials(Electrode･Separator･Aluminum Pouch), Optical materials (Polarizers, diffusion films)
Report Abuse
Main Features
- High speed and high precision slitting and rewinding.
- Rewinding shafts are Air Friction type with 2 air circuit.
- One is for tension control and the other one is for core chucking.
- Edge winding units are installed 2 units for each edge.
- Various slitting method and product receiver as an option.
Features
| Web width | 400 – 1200mm | Slitting method | Razor in air slitting Razor in groove slitting Tangent shear slitting Wrap shear slitting Circular blade in groove slitting |
|---|---|---|---|
| Roller width | 1300mm | ||
| Unwinding dia. | φ1000mm | ||
| Unwinding core size | 3/6 inches | ||
| Rewinding dia. | φ600mm | ||
| Rewinding core size | 3 inches | Mechanical speed | 400m/min. 600m/min. (as an option) |
| Min. rewinding width | 90mm(50mm as an option) |
