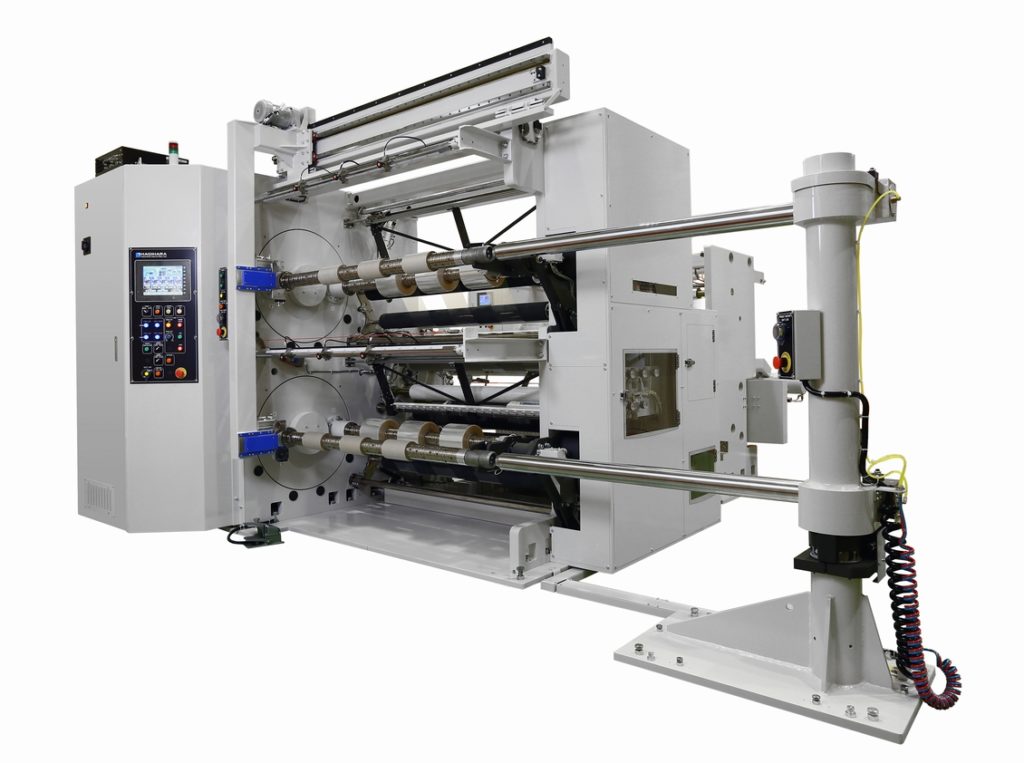

Semi-automatic Duplex Turret Slitter Rewinder SDT-926-1300 – HAGIHARA INDUSTRIES INC.
High efficiency and high performance
Main Use
Flexble packaging(Film/Paper/Foil),Automation
Main Features
- The duplex turret system offers less than 40 seconds changeover time.
- Rewinding shafts are Air Friction type with 2 air circuit.
- One is for tension control and the other one is for core chucking.
- Edge winding units are installed 2 units for each edge.
- Automatic web cut off and splicing web to new core.
Specifications
| Web width | 400 – 1200mm | Min. rewinding width | 90mm(50mm as an option) |
|---|---|---|---|
| Roller width | 1300mm | Slitting method | Razor in air slitting
Razor in groove slitting Wrap shear slitting |
| Unwinding dia. | φ1000mm | ||
| Unwinding core size | 3/6 inches | ||
| Rewinding dia. | φ600mm | Rewinder design | Duplex turret system |
| Rewinding core size | 3 inches | Mechanical speed | 600m/min. |
VIDEO
