Nara Hybridization System (NHS) – NARA MACHINERY CO.LTD.
It contributes to the creation of new materials and significant performance improvement.
This is a technology for the surface modification and combination of fine particles with other fine particles in a dry process, mainly using impact forces while dispersing the raw materials in a high-speed air stream. Surface modification and combination of particles can lead to the creation of new materials and significant performance improvements that were not achievable in the past. The immobilization and film formation of fine particles (sub-particles) on the surface of the core particles (mother particles) is accomplished in an extremely short time of about three minutes. It is active in a very wide range of fields, depending on the combination of raw materials. It is also possible to spheronize irregularly shaped particles.
Report Abuse
Features
- This product can be used for a variety of purposes, such as improving dispersion, flowability, wettability, reaction interception, slow release control, improving electrical and magnetic properties, improving catalytic effect, improving coloration, shape control, improving weather resistance, improving light resistance, crystal form transition, promoting solubility, improving sintering properties, adding irregularities, solid solution preparation of solid solution, etc.
- It has a high versatility due to the unlimited number of combinations of raw materials.
- It is processed in high-speed air currents, resulting in high dispersibility of particles.
- Metallic particles and other easily oxidizable materials can be processed in a closed circuit of inert gas.
- Dry processing eliminates the need for solvents, but a small amount of solvent can be sprayed.
Application Examples
Toner, battery materials, luminescent materials, pharmaceuticals, foods, paints, pigments, catalysts, cosmetics, electronic ceramics, polishing materials, magnetic materials, biomaterials, optical materials, immobilization, film formation, spheronization of irregularly shaped particles, precision mixing
Specifications
Type | NHS-0 | NHS-1 | NHS-2 | NHS-3 | NHS-4 | NHS-5 |
---|---|---|---|---|---|---|
Power(kW) | 2.2 | 11 | 22 | 45 | 90 | 185 |
Powder amount (g/batch) | 50 | 400 | 800 | 1600 | 3200 | 6400 |
Rotor Diameter (mm) | 118 | 230 | 330 | 470 | 670 | 948 |
We can also design and produce products other than those listed above upon request.
Reference
Your Partner in Powder and Particle Processing.
A consistent engineering technology company since its foundation, with 138 world/domestic patents,Involved in various world business, from big plant construction to nano-technology R&D.
Need more info ?

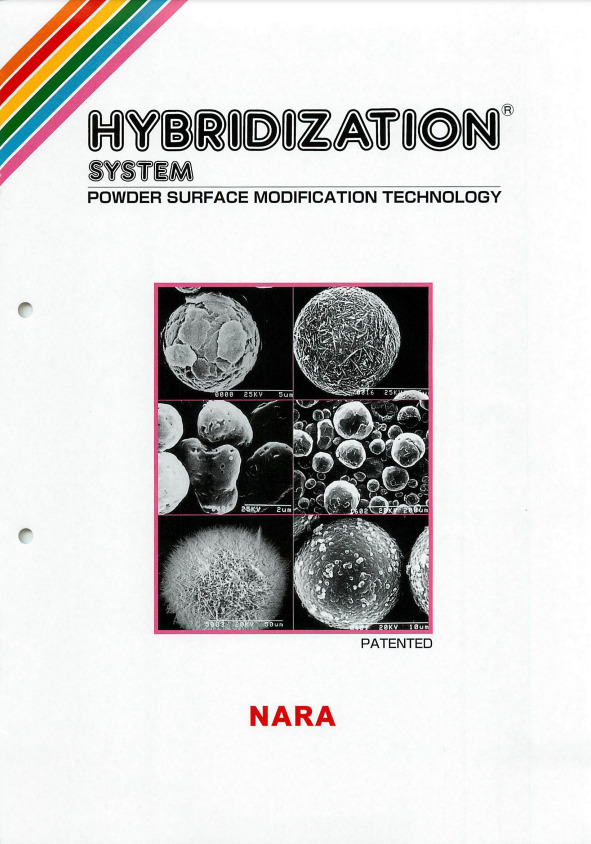

HYBRIDIZATION SYSTEM Powder Surface Modification Technology
NARA MACHINERY CO.,LTD.
Supplier Information
- Store Name: NARA MACHINERY CO.,LTD.
- Vendor: NARA MACHINERY CO.,LTD.
- Address: 143-0002
Tokyo Ota-ku 2-5-7 Jonanjima
- Chemical & Pharmaceutical Machinery, Crushers, Industrial Machinery
New Cosmomizer (COS) – NARA MACHINERY CO.LTD.
Chemical & Pharmaceutical Machinery, Crushers, Industrial MachineryNew Cosmomizer (COS) – NARA MACHINERY CO.LTD.
This is a dry, high-speed impact crusher with a built-in classification mechanism.
The basic structure consists of a rotor with grinding blades and classifier, a stator, and a self-circulating circuit for regrinding the coarse powder. The rotor itself has a classification mechanism and does not require a separately powered classifier. This makes the structure simple and easy to maintain.
SKU: n/a - Chemical & Pharmaceutical Machinery, Crushers, Industrial Machinery
Micros(MIC) – NARA MACHINERY CO.LTD.
Chemical & Pharmaceutical Machinery, Crushers, Industrial MachineryMicros(MIC) – NARA MACHINERY CO.LTD.
Micros is a wet milling machine with a completely different milling mechanism from conventional ball mills and bead mills.
The milling ring, which rotates at high speed inside the vessel while repeatedly spinning and orbiting, utilizes the extremely strong compressive and shearing forces of the material against the vessel wall for milling and dispersing the material.
This makes it possible to pulverize and disperse slurries with viscosities ranging from a few microns to the submicron order as well as slurries with high viscosities in a shorter time of about 20 to 30 minutes compared to other wet mills.SKU: n/a - Chemical & Pharmaceutical Machinery, Crushers, Industrial Machinery
Jiyu Mill (Mill) – NARA MACHINERY CO.LTD.
Chemical & Pharmaceutical Machinery, Crushers, Industrial MachineryJiyu Mill (Mill) – NARA MACHINERY CO.LTD.
This is an impact granulator that can pulverize a large amount of material in a short time by applying strong impact force to the material through high-speed rotation of a rotor with an impact column attached.
The lineup ranges from small to large models, allowing you to select the most suitable model for your planned facility. The robust and simple structure makes it suitable for pulverizing all kinds of materials, and it is widely used as the standard for industrial impact pulverizers.
SKU: n/a - Chemical & Pharmaceutical Machinery, Crushers, Industrial Machinery

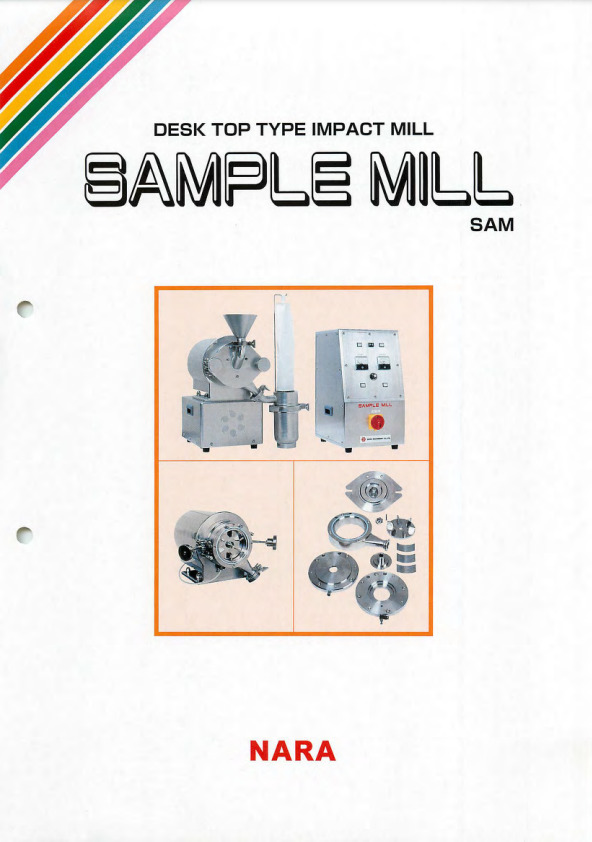

Sample Mill (SAM) – NARA MACHINERY CO.LTD.
Chemical & Pharmaceutical Machinery, Crushers, Industrial MachinerySample Mill (SAM) – NARA MACHINERY CO.LTD.
This is a compact impact crusher with GMP specifications suitable for R&D and small-lot production. The crushing section can be easily disassembled for cleaning.
By replacing the parts of the crusher, it can also be used as a granulator. The shaft seal is air-sealed to prevent foreign matter from mixing in. A compressor is built into the machine (tabletop type), so it can be easily used by simply providing a power supply.
SKU: n/a - Chemical & Pharmaceutical Machinery, Crushers, Industrial Machinery

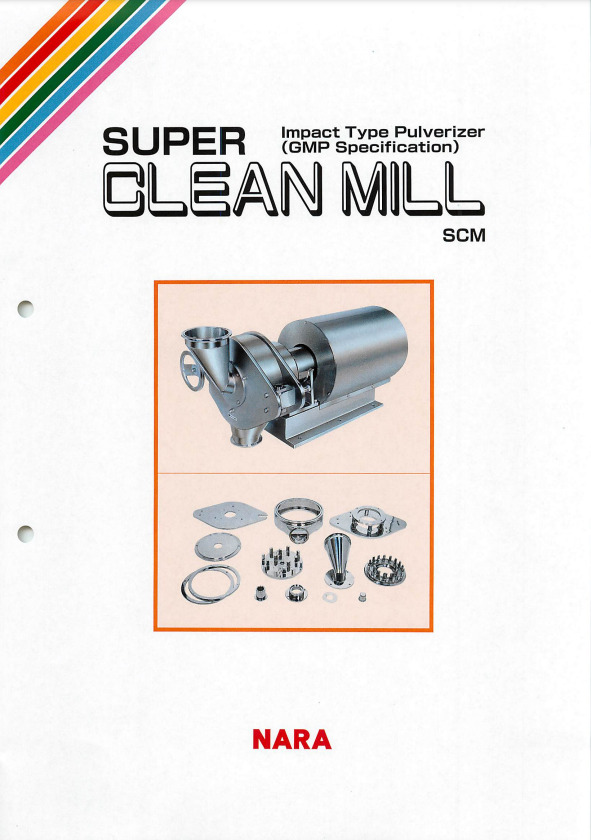

Super Clean Mill (SCM) – NARA MACHINERY CO.LTD.
