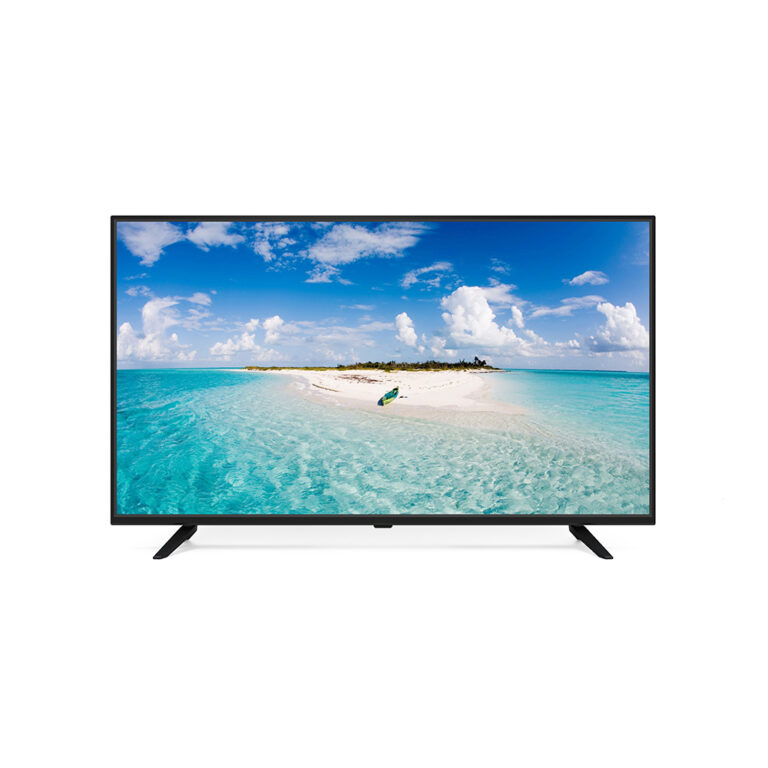

42V terrestrial, BS, 110 degrees, CS digital full HD LCD TV “SQ-Y42M” – SK JAPAN Co. Ltd.

Features

Direct type backlight LED

High-brightness backlight LED reproduces true colors.

The area control of the direct-type LED provides a clear contrast between black and white, resulting in sharp image rendering.

Easy connection of external HDD via USB

Mass recording is possible just by connecting a commercially available external hard disk.
Easy to connect with USB port.

Simultaneous connection of multiple external HDDs

Up to 4 devices can be connected simultaneously. (Up to 8 units can be registered)

Don’t miss it with a serial drama reservation!

Up to 4 devices can be connected simultaneously. (Up to 8 units can be registered)

Product Spec

part number SQ-Y42M
Rated power AC100V 50/60Hz
Screen size 42V type 924.48mm (width) x 506.52mm (height)
Backlight Direct type LED method
Category name DF1
number of pixels 1920 (horizontal) x 1080 (vertical)
response speed 8.0ms
Viewing angle (minimum value) Approximately 176° left and right / Approximately 176° up and down
Brightness (maximum value) 200cd/㎡±10%
Contrast Contrast ratio (standard value) 3000:1
receiving channel Terrestrial digital: VHF (1-12),
UHF (13-62), CATV (C13-C63),
CATV pass-through (VHF, UHF) compatible,
BS digital: BSOOO-BS999,
110 degree CS digital: CSOOO-CS999
tuner Terrestrial digital x 2, BS x 2, 110 degree CS digital x 2
Audio output (speaker) 10W+10W
2 HDMI inputs HDMI1 ver.1.4 (ARC compatible),
HDMI2 ver.1.4
HDMI compatible input resolution:
480i, 480p, 576i, 576p, 720p, 1080p
Computer input resolution:
1920 x 1080 (maximum)
headphone output Φ3.5mm stereo mini jack
Optical digital audio output square optical digital terminal
LAN terminal RJ45
USB terminal USB2.0
video input Video (pin jack): 1 V (pp) 75 Ω
Audio (pin jack): 200 mV (rms),
22 kΩ or more
data broadcasting Compatible with data broadcasting (BML)
A TV schedule Electronic program guide (EPG):
Latte column display format Viewing reservation / recording reservation possible
Operating environment temperature/humidity 0° to 35°/20 to 80% (non-condensing)
Size (width x depth x height) Without stand: 951 x 541 x 88mm
With stand: 951 x 588 x 218mm
mass Approximately 5.54 kg (5.79 kg including the stand)
power consumption 75W
Standby power 0.5W when power is on “standby”,
0W when power is off,
0.5W when function is running
(when acquiring program information, etc.)
annual power consumption 100.4kWh/year
power cord cord length 1.5m
accessories 1 remote control,
2 AAA batteries for remote control, 1
miniB-CAS card, 1 set of stand,
4 stand fixing screws,
1 instruction manual with warranty
Remote controller part number SQ-YRC3
power supply DC3V (AAA battery x 2)
operation distance About 7m (but go straight)
