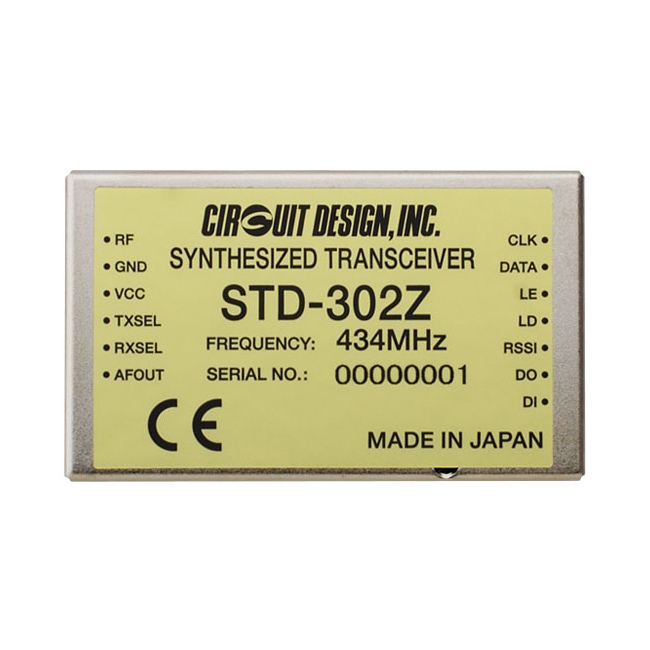

Channel Programmable Transceiver STD-302Z – Circuit Design Inc.
419 / 429 / 434 / 447 / 458 / 869 MHz transceiver for industrial remote control of heavy machinery
The UHF FM narrowband semi-duplex radio module STD-302Z operating at 434 MHz is suitable for industrial remote control and telemetry applications in the 434 MHz ISM band.
SAW Filters and Narrowband Technologies
SAW filters and narrowband technologies provide reliable data communication in industrial applications where interference rejection and practical distance range are required. They are suitable for feedback systems.
Product Usage
Industrial remote control
Data transmission
Specifications
| STD-302Z 419MHz | STD-302Z 429 MHz | STD-302Z 434MHz | |
| Communication method | Simplex, Half duplex | Simplex, Half duplex | Simplex, Half duplex |
| Frequency range | Simplex, Half duplex | Simplex, Half duplex | Simplex, Half duplex |
| Frequency range | 418.725 to 419.425 MHz | 429.25 to 429.7375 MHz | 433.075 to 434.775 MHz |
| Channel step | 25 kHz Channel Programmable | 12.5 kHz Channel programmable | 25 kHz Channel Programmable |
| RF bit rate | 9,600 bps | 4,800 bps | 9,600 bps |
| Pulse width | Min. 100 µs / Max. 15ms | Min. 200 µs / Max. 15 ms | Min. 100 µs / Max. 15 ms |
| Supply voltage | 3.0 to 5.5 V DC | 3.0 to 5.5 V DC | 3.0 to 5.5 V DC |
| Supply current | 44 mA typ (TX), 28 mA typ (RX) | 44 mA typ (TX), 28 mA typ (RX) | 44 mA typ (TX), 28 mA typ (RX) |
| Operating temperature | -20 to +60 degree C | -20 to +60 degree C | -20 to +60 degree C |
| Dimensions | 30 x 50 x 9 mm | 30 x 50 x 9 mm | 30 x 50 x 9 mm |
| Weight | 25 g | 25 g | 25 g |
| Communication range | 600m LOS | 600m LOS | 600m LOS |
| Communication method | STD-302Z 447 MHz | STD-302Z 458MHz | STD-302Z 869 MHz |
|---|---|---|---|
| Frequency range | Simplex, Half duplex | Simplex, Half duplex | Simplex, Half duplex |
| Channel step | 447.275 to 447.9875 MHz | 458.525 to 459.175 MHz | 868.025 to 870.975 MHz |
| RF bit rate | 12.5 kHz Channel Programmable | 25 kHz Channel Programmable | 25 kHz Channel Programmable |
| Pulse width | 4,800 bps | 9,600 bps | 9,600 bps |
| Supply voltage | Min. 200 µs / Max. 15ms | Min. 100 µs / Max. 15ms | Min. 100 µs / Max. 15ms |
| Supply current | 3.0 to 5.5 V DC | 3.0 to 5.5 V DC | 3.0 to 5.5 V DC |
| Operating temperature | -20 to +60 degree C | -20 to +60 degree C | -20 to +60 degree C |
| Dimensions | 30 x 50 x 9 mm | 30 x 50 x 9 mm | 30 x 50 x 9 mm |
| Weight | 25 g | 25 g | 25 g |
| Communication range | 600m LOS | 600m LOS | 600m LOS |
Reliability and competitiveness
Circuit Design is a leading design and manufacturing company of low power radio products. Circuit Design designs and supplies low power narrow-band standard radio modules for short-range applications. Our RF modules are designed to serve customers in fields such as Telecommand and Telecontrol, Telemetry, and in the Alarm market where high reliability is required for industrial applications. Circuit Design’s quality system is certified by ISO9001. Circuit Design’s corporate objective is to enhance customer reliability and competitiveness in their radio link applications by providing the necessary narrow band products.
Address
7557-1, Hotaka, Azumino-city, Nagano, 399-8303, Japan
Need more info ?

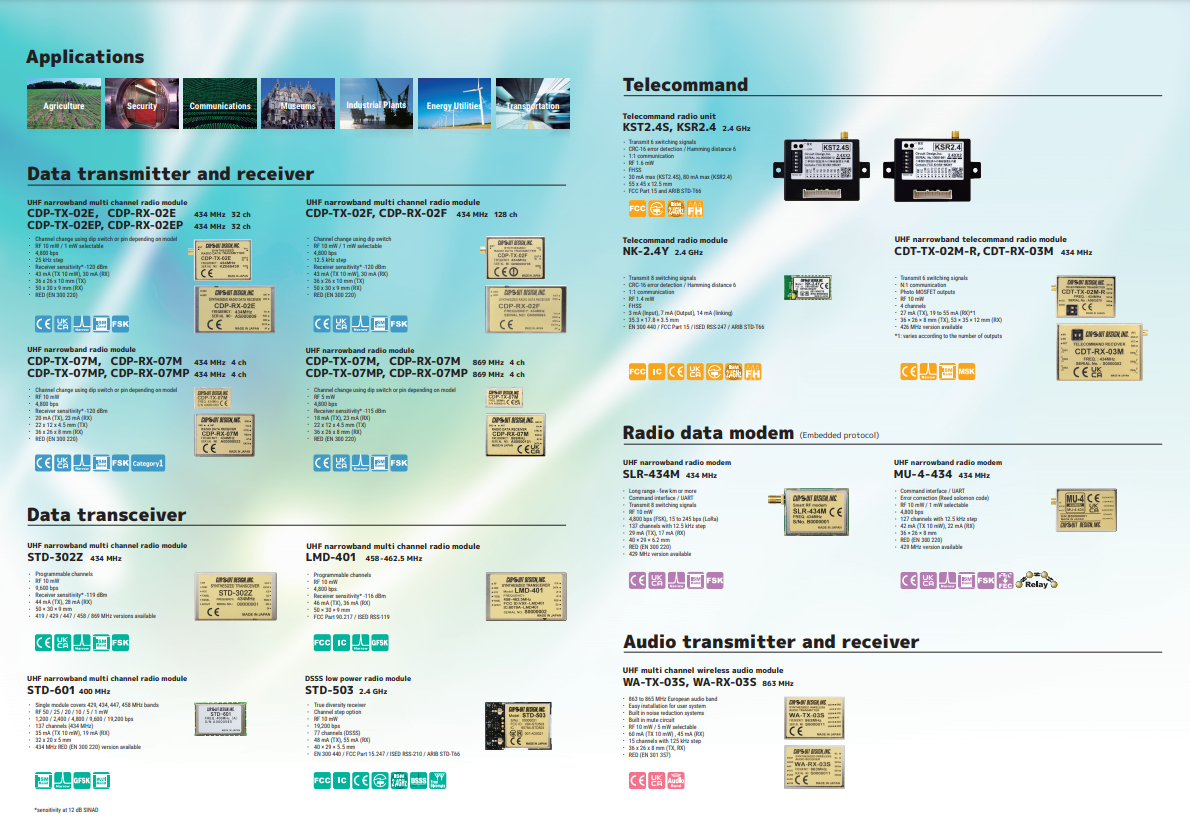

Circuit Design English catalog
Circuit Design, Inc.
Vendor Information
- Store Name: Circuit Design, Inc.
- Vendor: Circuit Design, Inc.
-
Address:
399-8303
Nagano Azumino 7557-1
Hotaka
-
Electronic Components, Module

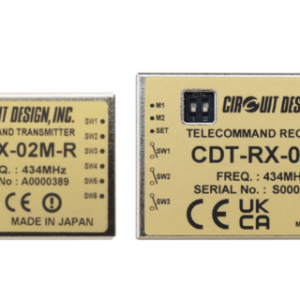

Multi Channel Telecommand Transmitter and Receiver CDT-TX-02M-R / CDT-RX-03M – Circuit Design Inc.
