IMPACT PRESS Dynamark – NAKA SEIKI CO.LTD.
Accurate and clean finish
It is very powerful for short-stroke operations such as engraving, swaging, cutting, deburring of castings and plastics, and riveting.
Report Abuse
Features

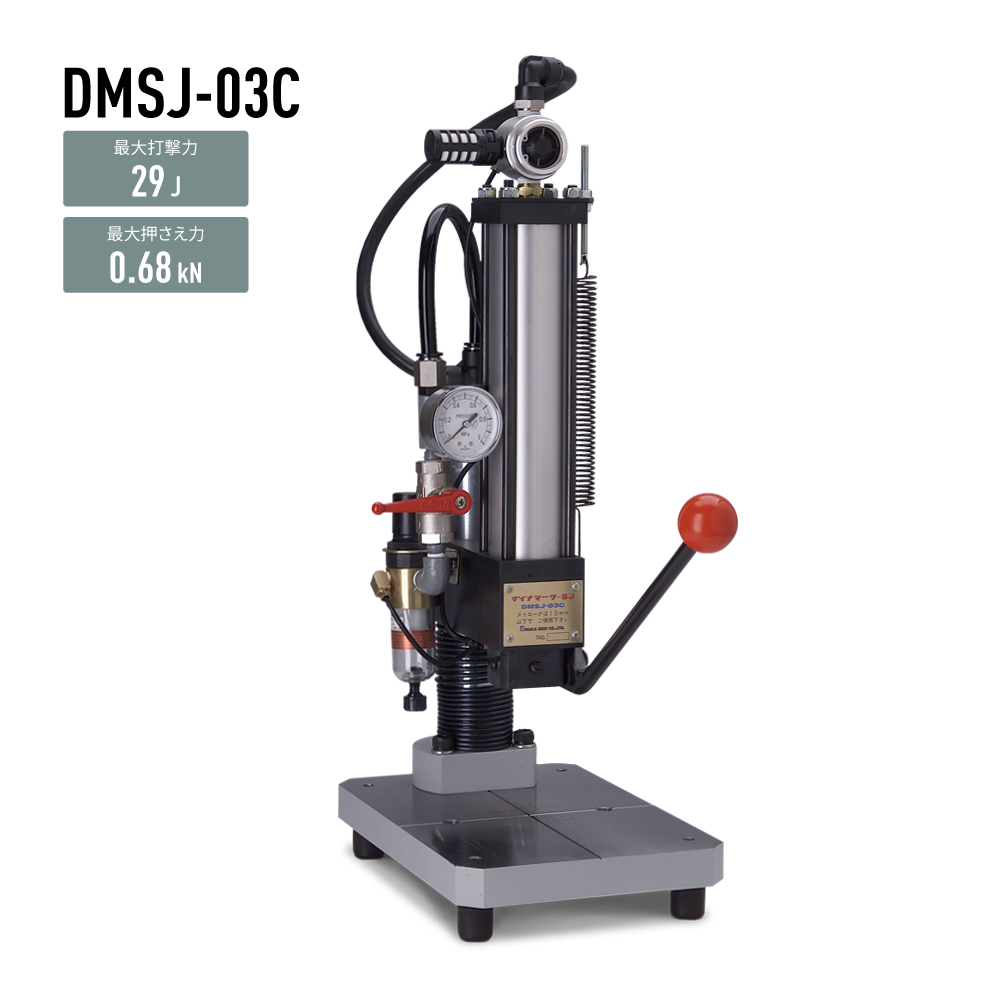

DMSJ-03C
The DMSJ-03C presses the workpiece before applying blows, ensuring accurate and clean finishing.
When the DMSJ-03C is used for engraving at an air pressure of 0.5 MPa, its power is equivalent to that of a hydraulic press of approximately 7 tons. Air consumption is only 0.65 Nℓ/st, realizing revolutionary low cost, space saving, and energy saving.
The press holds the workpiece before striking it, making it safe in spite of its high output. Easy positioning and adjustment.
Just connect an air source and lightly press the lever to start operation.

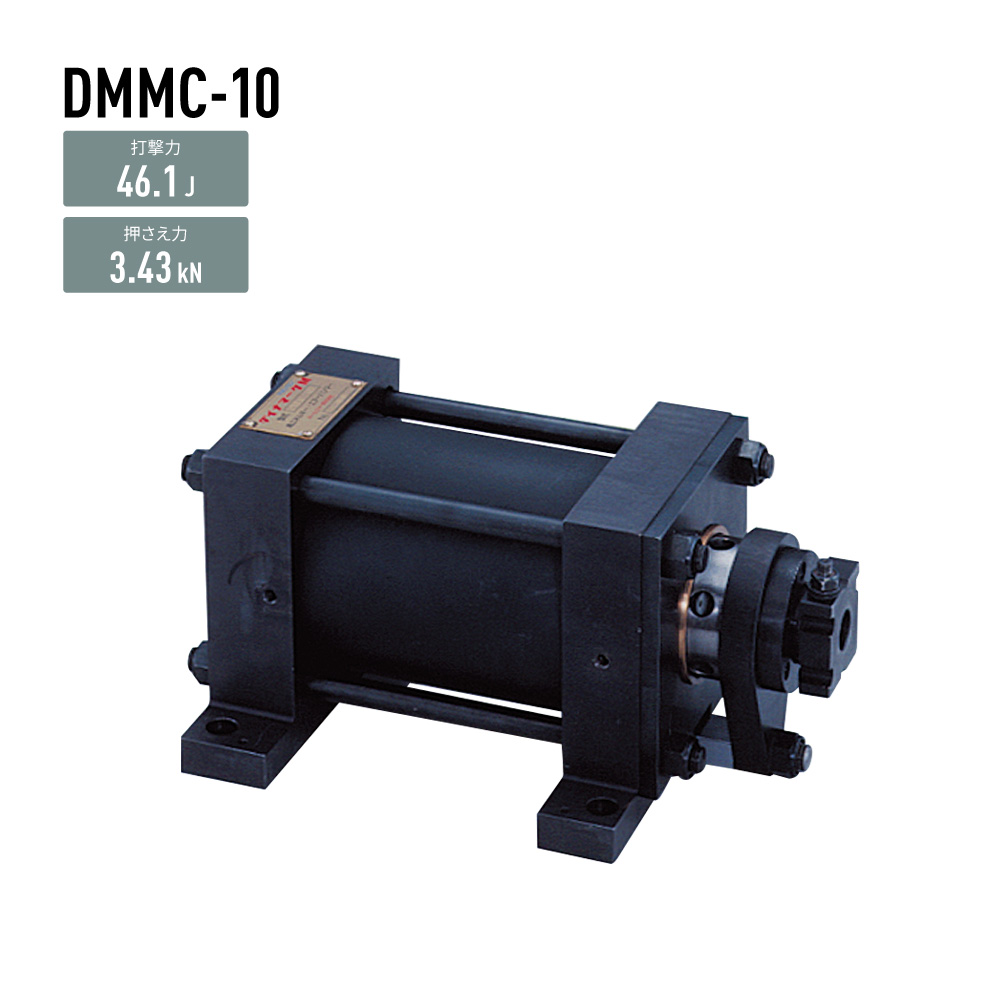

DMMC Series
The DMMC Series can be handled like an ordinary air cylinder, and the speed of the holding stroke can be adjusted by the speed control.
A circuit using a differential pressure sequence valve and a pressure switch enables the cylinder to automatically strike the workpiece after it is held down.
Specifications
Air Impact Press “Dynamark”
Model | DMSJ-03C | DMMC-01C | DMMC-02D | DMMC-04B | DMMC-10 | |
---|---|---|---|---|---|---|
Impact Force (Energy) | J | 29.0 | 9.8 | 21.6 | 46.1 | 112.7 |
Propulsion Stroke | mm | 15 | 71 | 90 | 108 | 113 |
Cylinder Diameter | mm | 50 | 50 | 63 | 100 | 150 |
Air Consumption | Nℓ | 0.65 | 1.6 | 3.3 | 10.5 | 23.0 |
Holding Force | kN | 0.68 | 0.8 | 1.27 | 3.43 | 7.64 |
Work Height | mm | 80-180 | – | – | – | – |
Frame Height | mm | 560-660 | – | – | – | – |
Ram Hole Diameter | φ mm | 22 × Depth 35 | 25 × Depth 55 | |||
Table Size | mm | 200×220 | – | – | – | – |
Table Height | mm | 57 | – | – | – | – |
Overhang | mm | 85 | – | – | – | – |
Mount Size | mm | 200×300 | 295×88 | 367×100 | 370×180 | 390×270 |
Weight | kg | 28.0 | 7.0 | 10.6 | 25.5 | 58.0 |
Option | DMSJ-03C | DMMC-01C | DMMC-02D | DMMC-04B | DMMC-10 | |
---|---|---|---|---|---|---|
Large Marking Holder UCHM-34 | ● | ● | ● | ● | – | |
Small Marking Holder UCHM-18 | ● | ● | ● | ● | – | |
Sequence Valve SQV-DB-01 | – | ● | ● | ● | ● | |
Pressure Switch PSW-D | – | ● | ● | ● | ● |
