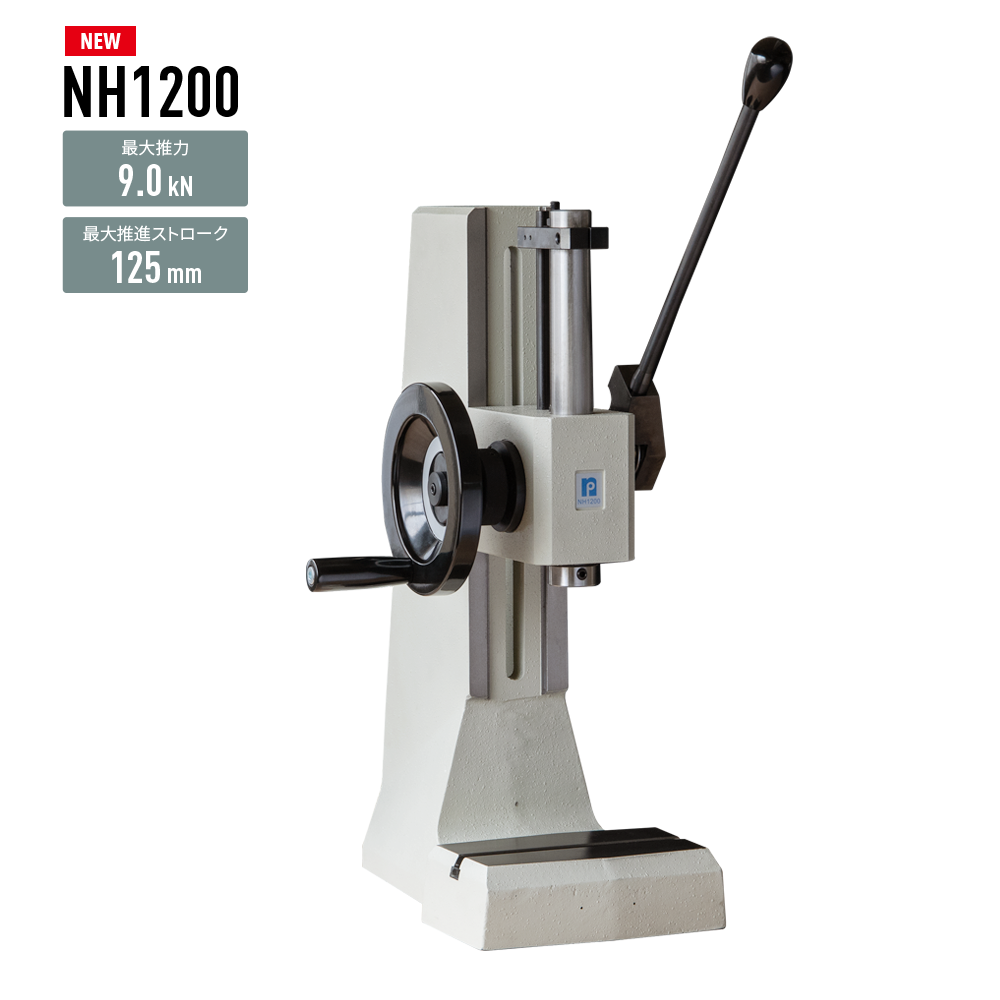

HAND PRESS rack and pinion type NH1200 – NAKA SEIKI CO.LTD.
High thrust of 9 kN and stroke of 125 mm are possible.
Suitable for a wide range of work with excellent operability that enhances work efficiency and productivity.
Powerful push, deep pockets, and long stroke for a wide range of applications.
Easy stroke adjustment and tool change.
Easy to handle and excellent operability.
Compact design that takes up little space.
Report Abuse
Specifications
 | ||
|---|---|---|
| Model | NH1200 | |
| Maximum thrust | kN | 9.0 |
| Hand lever input | N | 200 |
| Propulsion stroke | mm | 125 |
| Lever rotation angle/stroke | °/mm | 170°/17 |
| Maximum weight of upper fixture | kg | 1.0 |
| Overhang amount | mm | 105 |
| Main spindle ram hole diameter x depth | φmm | 16H×25 |
| Work-height | mm | 75〜320 |
| Frame height | mm | 540 |
| Table size | mm | 180×120 |
| Table hole diameter | mm | ー |
| Table height | mm | ー |
| Mount Size | mm | 199.5×340 |
| Weight | kg | 42 |
Option
| Nickel plating specification | ー |
|---|---|
| Distance blocks set | ● |
| Mechanical counter | ー |
| Left handle | ー |
| Crankshaft handle | ー |
| Fine adjustment mechanism (1 graduation: 0.02 mm) | ー |
| Long stroke | ー |
| Return stroke lock mechanism | ー |
| Digital Load Cells “Forster”. | ● |
