DK-5000B Series (Timestamp Recorder) – Line Seiki Co. Ltd.
Timestamp Recorder with input keys
Every time the keys are pressed, the date and time are recorded, and the number of presses is displayed. The start and end times are also noted. The saved data can then be analyzed on a computer.
Models
| Models | Type |
|---|---|
| DK-5005B | Timestamp Recorder with 5 input keys |
| DK-5010B | Timestamp Recorder with 10 input keys |
| DK-5030B | Timestamp Recorder with 30 input keys |
Specifications
| Input Type | Rubber Key |
|---|---|
| Display Type | 7-Segment LCD Counter (x5/x10/x30) : 7mm(H), Total Count : 5mm(H) Record Number / Time Display : 3.5mm(H) |
| Count Display | Display : 0 – 9999 (Internal : 0 – 99999) |
| Total Count Display | 0 – 999999 |
| Clock Function | Year / Month / Day / Hour(24hour) / Minute / Second |
| Memory | Max. key input times DK-5005B : 48,000 DK-5010B : 27,750 DK-5030B : 10,000 |
| Data Communication | USB micro-B (USB 2.0) |
| Power Source | AAA Battery x 4pcs. | USB Cable | AC/DC Adapter |
| Battery Life | 200 hours min. * |
| Ambient Temp. : Operating | 0 – +50°C (non-freezing) |
| Ambient Temp. : Storage | -10 – +60°C (non-freezing) |
| Weight (excl. Battery) | DK-5005B : Approx. 130g / DK-5010B : Approx. 185g / DK-5030B : Approx. 340g |
| Dimensions | DK-5005B : 70 x 170 x 25mm / DK-5010B : 96 x 170 x 25mm / DK-5030B : 186 x 170 x 25mm |
| Compliance | CE, RoHS |
*(under normal operating temperature using Alkaline type battery)
Creating products that benefit society. Creating people-friendly products.
It is people who create products, and it is people who use those products.
No matter how times change, it is people who create new value, and we believe that without human connections, we would not be able to create the products that the world needs.
Address
2-37-7, Chuo-Cho, Meguro-ku, Tokyo 152-0001, Japan.
Need more info ?
LINE SEIKI DK-5000 Series M16 Series Catalog
Line Seiki Co., Ltd.
Vendor Information
- Store Name: Line Seiki Co., Ltd.
- Vendor: Line Seiki Co., Ltd.
-
Address:
152-0001
Tokyo Meguro-ku Chuomachi
2-37-7
-
Electronic Components, Module
DK-5000A Series (Multiple Counters) – Line Seiki Co. Ltd.
A tally counter with a timestamp
The electronic tally unit comprises five, ten, and thirty independent counters.
This digital tally counter can record the individual count values and the total count value, along with a corresponding timestamp.
It can store up to 250 records in its memory.
The recorded data can be displayed and saved on a computer.SKU: n/a -
Electronic Components, Module

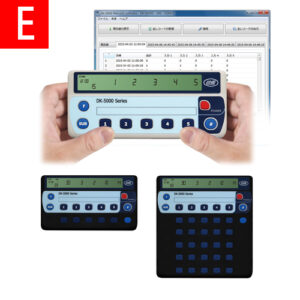

DK-5000E Series (Multiple Counters w/Buzzer) – Line Seiki Co. Ltd.
