2 phase hybrid stepper motor 42D series – ASPINA
□42mm (NEMA17), 1.8° step angle, unipolar/bipolar
Compact and powerful stepper motor that fits various applications including indusrial autionation equipment, printing/scanning machines, medical/laboratory machines. RoHS compliant.
Report Abuse

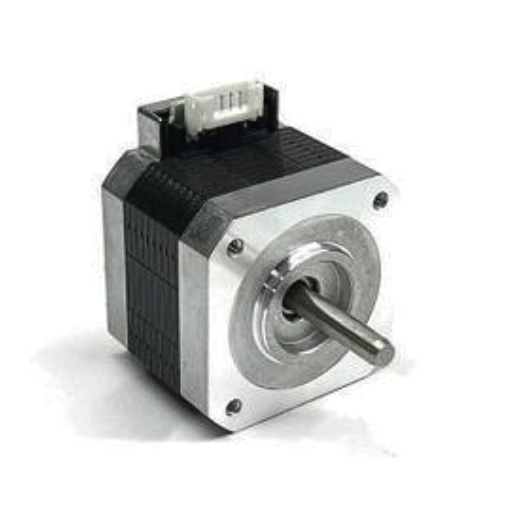

ASPINA 2 phase hybrid stepper motor
□42mm (NEMA17), 1.8° step angle, 2 phase unipolar/bipolar, hybrid type
Features
Compact and powerful
Length: 27.5 to 58mm
Mass: 170 to 490g
Holding torque: 149 to 783mN・m (unipolar), 195 to 1,025mN・m (bipolar)
Pull out torque*: 200mN・m at 1,800rpm (STA-42D5006 unipolar, 2.1A/phase), 200mN・m at 2,100rpm (STA-42D5010 bipolar, 2.8A/phase)
Customization
We customize shaft, lead wires, winding, encoder, etc. to meet customer requirements.
RoHS compliant
* Chopper drive by DC24V supply with rubber damper mounting
Technical Data(SPEC)
Unipolar
Model | Step angle | Voltage | Current | Resistance | Holding torque | Rotor inertia | Mass | Length |
---|---|---|---|---|---|---|---|---|
Deg. | V | A/Φ | Ω/Φ | mN·m | g·㎠ | g | mm | |
STA-42D0000 | 1.8 | 6.55 | 0.5 | 13.10 | 154 | 21 | 170 | 27.5 |
STA-42D0001 | 1.8 | 4.74 | 0.6 | 7.70 | 149 | 21 | 170 | 27.5 |
STA-42D0002 | 1.8 | 3.60 | 0.8 | 4.50 | 150 | 21 | 170 | 27.5 |
STA-42D0003 | 1.8 | 3.20 | 1.0 | 3.20 | 159 | 21 | 170 | 27.5 |
STA-42D1000 | 1.8 | 5.04 | 0.6 | 8.40 | 195 | 29 | 190 | 30 |
STA-42D1001 | 1.8 | 4.00 | 0.8 | 5.00 | 200 | 29 | 190 | 30 |
STA-42D1002 | 1.8 | 3.60 | 1.0 | 3.60 | 210 | 29 | 190 | 30 |
STA-42D1003 | 1.8 | 2.76 | 1.2 | 2.30 | 200 | 29 | 190 | 30 |
STA-42D2000 | 1.8 | 3.92 | 0.8 | 4.90 | 270 | 44 | 230 | 34 |
STA-42D2001 | 1.8 | 3.60 | 1.0 | 3.60 | 290 | 44 | 230 | 34 |
STA-42D2002 | 1.8 | 3.24 | 1.2 | 2.70 | 300 | 44 | 230 | 34 |
STA-42D2003 | 1.8 | 2.66 | 1.4 | 1.90 | 290 | 44 | 230 | 34 |
STA-42D3000 | 1.8 | 4.40 | 1.0 | 4.40 | 420 | 65 | 290 | 40 |
STA-42D3001 | 1.8 | 3.96 | 1.2 | 3.30 | 440 | 65 | 290 | 40 |
STA-42D3002 | 1.8 | 3.29 | 1.4 | 2.35 | 420 | 65 | 290 | 40 |
STA-42D3003 | 1.8 | 2.64 | 1.6 | 1.65 | 380 | 65 | 290 | 40 |
Model | Step angle | Voltage | Current | Resistance | Holding torque | Rotor inertia | Mass | Length |
---|---|---|---|---|---|---|---|---|
Deg. | V | A/Φ | Ω/Φ | mN·m | g·㎠ | g | mm | |
STA-42D4000 | 1.8 | 5.04 | 1.2 | 4.20 | 630 | 87 | 390 | 49.5 |
STA-42D4001 | 1.8 | 4.34 | 1.4 | 3.10 | 610 | 87 | 390 | 49.5 |
STA-42D4002 | 1.8 | 3.57 | 1.7 | 2.10 | 585 | 87 | 390 | 49.5 |
STA-42D4003 | 1.8 | 3.50 | 2.0 | 1.75 | 585 | 87 | 390 | 49.5 |
STA-42D5003 | 1.8 | 6.00 | 1.2 | 5.00 | 773 | 111 | 490 | 58 |
STA-42D5004 | 1.8 | 4.64 | 1.6 | 2.90 | 783 | 111 | 490 | 58 |
STA-42D5005 | 1.8 | 4.50 | 1.8 | 2.50 | 757 | 111 | 490 | 58 |
STA-42D5006 | 1.8 | 3.99 | 2.1 | 1.90 | 697 | 111 | 490 | 58 |
Bipolar
Model | Step angle | Voltage | Current | Resistance | Holding torque | Rotor inertia | Mass | Length |
---|---|---|---|---|---|---|---|---|
Deg. | V | A/Φ | Ω/Φ | mN·m | g·㎠ | g | mm | |
STA-42D0004 | 1.8 | 4.27 | 0.7 | 6.10 | 200 | 21 | 170 | 27.5 |
STA-42D0005 | 1.8 | 3.42 | 0.9 | 3.80 | 205 | 21 | 170 | 27.5 |
STA-42D0006 | 1.8 | 2.53 | 1.1 | 2.30 | 195 | 21 | 170 | 27.5 |
STA-42D0007 | 1.8 | 2.21 | 1.3 | 1.70 | 195 | 21 | 170 | 27.5 |
STA-42D1004 | 1.8 | 3.83 | 0.9 | 4.25 | 270 | 29 | 190 | 30 |
STA-42D1005 | 1.8 | 2.75 | 1.1 | 2.50 | 255 | 29 | 190 | 30 |
STA-42D1006 | 1.8 | 2.66 | 1.4 | 1.90 | 270 | 29 | 190 | 30 |
STA-42D1007 | 1.8 | 1.96 | 1.7 | 1.15 | 265 | 29 | 190 | 30 |
STA-42D2004 | 1.8 | 2.88 | 1.2 | 2.40 | 390 | 44 | 230 | 34 |
STA-42D2005 | 1.8 | 2.45 | 1.4 | 1.75 | 385 | 44 | 230 | 34 |
STA-42D2006 | 1.8 | 2.30 | 1.7 | 1.35 | 400 | 44 | 230 | 34 |
STA-42D2007 | 1.8 | 2.09 | 1.9 | 1.10 | 380 | 44 | 230 | 34 |
STA-42D3004 | 1.8 | 3.43 | 1.4 | 2.45 | 540 | 65 | 290 | 40 |
STA-42D3005 | 1.8 | 3.04 | 1.6 | 1.90 | 565 | 65 | 290 | 40 |
STA-42D3006 | 1.8 | 2.57 | 1.9 | 1.35 | 525 | 65 | 290 | 40 |
STA-42D3007 | 1.8 | 2.20 | 2.2 | 1.00 | 490 | 65 | 290 | 40 |
Model | Step angle | Voltage | Current | Resistance | Holding torque | Rotor inertia | Mass | Length |
---|---|---|---|---|---|---|---|---|
Deg. | V | A/Φ | Ω/Φ | mN·m | g·㎠ | g | mm | |
STA-42D4004 | 1.8 | 3.40 | 1.7 | 2.00 | 823 | 87 | 390 | 49.5 |
STA-42D4005 | 1.8 | 3.14 | 1.9 | 1.65 | 778 | 87 | 390 | 49.5 |
STA-42D4006 | 1.8 | 2.73 | 2.1 | 1.30 | 700 | 87 | 390 | 49.5 |
STA-42D4007 | 1.8 | 2.65 | 2.3 | 1.15 | 658 | 87 | 390 | 49.5 |
STA-42D5007 | 1.8 | 4.25 | 1.7 | 2.50 | 1025 | 111 | 490 | 58 |
STA-42D5008 | 1.8 | 3.19 | 2.2 | 1.45 | 1015 | 111 | 490 | 58 |
STA-42D5009 | 1.8 | 3.13 | 2.5 | 1.25 | 1000 | 111 | 490 | 58 |
STA-42D5010 | 1.8 | 2.66 | 2.8 | 0.95 | 880 | 111 | 490 | 58 |
Supplier Information
- Store Name: ASPINA
- Vendor: ASPINA
- Address:
- Electronic Components, Motor
