POP＠Rivets Structural rivets – Nikkei Sangyo Co.Ltd.

Compare

Multiple base materials can be fastened easily and quickly through work performed on one side.

This enables speedy assembly work compared to the conventional welding method and the tapping screw method,contributing to cost reductions.
Handling is easy even for first-time users.
As the work requires only a lightweight fastening tool,even long hours of work is undemanding.
Structural rivets are available in three types:HCrivets®,Hcrivets® and UG rivets.
HCrivets® are a mandrel axial force transfer-type rivet.
As the flange is squeezed with the workpiece attracted on the buckling side,it generates a powerful crimping force.
As this makes the parallel groove of the mandrel bite into the body,loosening due to vibration does not occur.
HSrivet® is a wide buckling-type rivet.It buckles into a bulb shape and generates a powerful crimping force.
With its wide buckling diameter, it also generates a powerful tensile force.
UG rivets are hole-filling rivets.They use an internal lock mechanism that is resistant to vibration.
The thickness of the wide fastening plate is able to reduce the number of components.

Report Abuse

Description

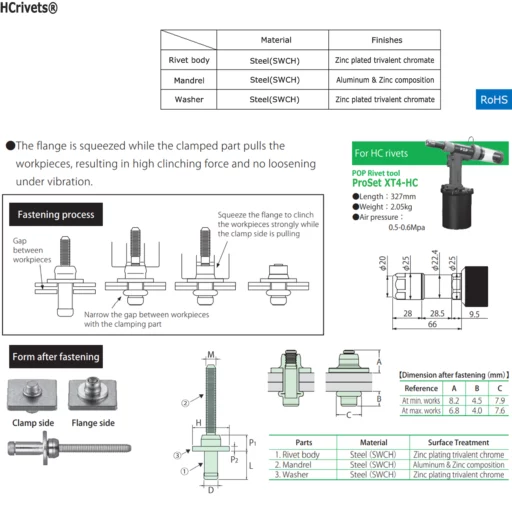

  • The HC rivet attracts the workpiece on the buckling side and,in that state,narrows the flange.As such,it generates a very high axial force (crimping force) and will not loosen even under strong vibration.

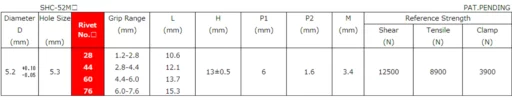

  • HC rivet diameter: φ5.15
  • When using HC rivets,use ProSetXT4-HC tools specially designed for HC rivets.

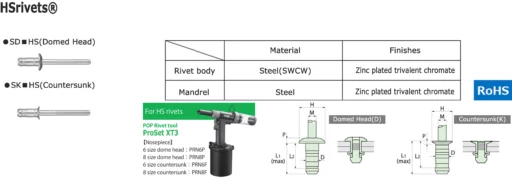

  • HS rivets have a special body structure that buckles into a bulb shape.They generate a strong crimping force between workpieces.
  • Nominal diameters of HS：φ4.8、φ6.4
  • When using HS rivets,use ProSetXT3 tools.

  • With an internal lock mechanism that solves problems with external locks,UG rivets can be used with
    vibrating parts on vehicle chassis,mountings,etc.
  • UG rivets are ideal for assembling non-welded structures.
  • With the thickness of the wide application,UG rivets are able to reduce the number of components.
  • Nominal diameters of UG：φ4.8、φ6.4
  • When using UG rivets,use ProSetXT3 tools.

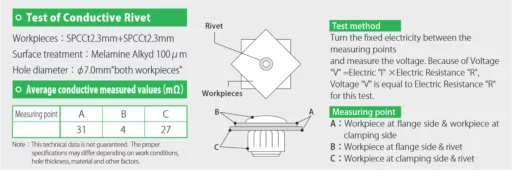

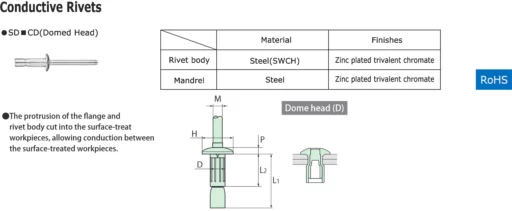

  • With conductive (CD) rivets,the flange and body projections break through the coating of workpieces to enable electrical conduction between workpieces just through the rivet fastening work.
  • When using conductive (CD) rivets,use ProSetXT3 tools.
  • Our products are exported in units of 1,000 pieces.
  • Please feel free to contact us if you need any samples.
