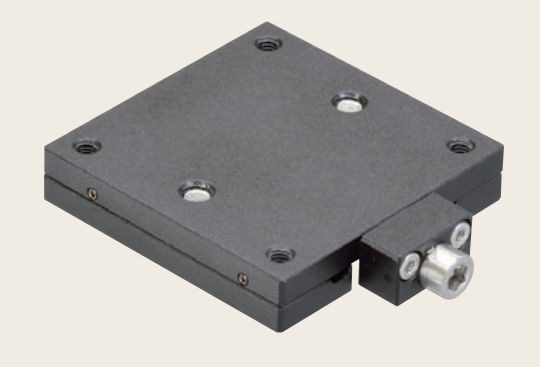

Low-profile Fixed Stage – CHUO PRECISION INDUSTRIAL CO.LTD.
This is a clampless stage that does not move after position adjustment.
Report Abuse
Features
- A special mechanism prevents backlash.
- Use a hex wrench to adjust the position. *Hex wrench is not included. Please prepare it yourself.
- It is most suitable for workpieces that do not need to be moved after position adjustment, such as cameras and sensors, rather than workpieces that require constant position adjustment.
- Positioning is possible with a device as thin as a spacer (8 mm) (for X stage).
- By arranging the feed screw in the center of the table, a shape with less protrusion has been achieved, making it especially effective for installation in narrow spaces.
- Not only can it be installed horizontally, but it can also be installed vertically or upside down.
CHUO PRECISION INDUSTRIAL for precision stage units and optical related equipment
After establishment in 1955, Chuo Precision Industrial Co,. Ltd have used their steady growth to achieve their own unique accomplishments as a member of the Japan Society for Precision Engineering. Based on our “Tool Scope” brand of industrial microscopes, our design, manufacturing, and sales of optical measuring instruments has become the foundation for our large loyal customer base.
In 1964, we were inducted into the Japan Optical Measuring Instruments Manufacturers’ Association and put a great amount of effort into development within the industry.
Our range of optical units, including the general-purpose holographic interferometer which was developed in 1967, is being used by the vast majority of research institutions and universities throughout Japan.
We greatly value all our current loyal customers and we are forever striving to develop new products to meet the strict demands of a new generation.
We have advanced our highly acclaimed precision manual and motorized stage units to meet the demands of our customers, and we have continued onward to launch the Mechatronics Motorized stage system, complete with newly added features.
In 2008, we were able to develop our original “HG-VCR” guidance system that achieves high precision, high rigidity, and high load resistance. This was added to our manual and motorized High Grade Stage lineup.
Moreover, we enriched our easy-to-use and devoted to practical product line for not only meet the expectations of our Japanese engineers but those of engineers of all countries in the world.
