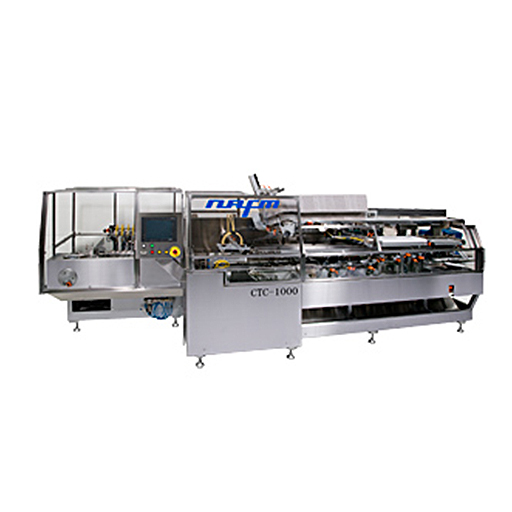

Accumulation for PTP Intermittent Horizontal Cartoner CTC-1000 – Nippon Automatic Fine Machinery Co. Ltd
Accumulation for PTP Intermittent horizontal cartoner
The purpose of this machine is to pack 100 to 1,000 PTP tablets in a single unit, and its structural design meets the basic requirements of GMP. In order to minimize human error, the female part of the mold changer is designed to be applied to the female side of the mold to ensure that it can be locked in the same place, and the position adjustment is numerically controlled by digital positioning. To ensure higher quality, a slide is provided at the bottom of the conveyor to ensure that products and attached documents fall to the operator’s side. SUS and aluminum are used as materials to improve quality.
Features
- Reliable box molding.
- Balcony type for full GMP measures. (Clear cartons, etc., which are difficult to mold, are also acceptable.)
- Sliding carton stock conveyor facilitates mold changeover and maintenance.
- Product loading is at the front for easy mold changeover and maintenance.
Standard Specifications
| Capacity | 60CPM |
| Carton dimensions (mm) | W=40-195 H=30-130 L=80-200 |
| Machine dimensions (mm) | W=1850 H=1550 L=4600 |
| Machine weight | approx. 4000kg |
| Machine power | approx. 40kW |
Pioneer in packaging machinery
Manufacturer of cartoners, shrink labelers, battery lines, and various other packaging machines
Solution proposal
Shrink labeler/heater system
A diverse lineup of shrink labelers and system construction including heater systems
Pharmaceutical packaging integrated line system proposal
Our company builds a system that covers everything from filling pharmaceuticals to packaging, boxing, and palletizing.
| Use Cases | |
|---|---|
| Product Type |
Vendor Information
- Store Name: Nippon Automatic Fine Machinery Co., Ltd
- Vendor: Nippon Automatic Fine Machinery Co., Ltd
-
Address:
245-0043
Kanagawa Yokohama 915 Kamiyabe-cho
-
Industrial Machinery, Packaging, Packaging Machines
Small box filling machine CRF-2000 – Nippon Automatic Fine Machinery Co. Ltd
Industrial Machinery, Packaging, Packaging MachinesSmall box filling machine CRF-2000 – Nippon Automatic Fine Machinery Co. Ltd
Continuous cartoner with balcony structure and rotary forced carton raising
Carton removal is performed by applying the conventional rotary system. After carton removal, the carton is fed by the timing belt, and after being temporarily raised by a suction cup, the side of the carton is bent 90° or 180° while being sucked by the suction cup, and then placed in the finger bucket. This allows the carton to be forcibly erected while in motion, eliminating wasted space and ensuring that the carton is in contact with the belt, guides, and finger buckets before it is discharged, thereby achieving reliable carton transport. The intermediate bucket for mold change parts is a one-touch type, leading to shorter mold change time.
SKU: n/a -
Industrial Machinery, Packaging, Packaging Machines
Continuous horizontal cartoner C-7NR – Nippon Automatic Fine Machinery Co. Ltd
Industrial Machinery, Packaging, Packaging MachinesContinuous horizontal cartoner C-7NR – Nippon Automatic Fine Machinery Co. Ltd
The one-motor mechanical structure provides superior rigidity, allowing for production of long-term plans.
Equipped with rotary type box forming mechanism
Digital counter type handle shortens the time required for dual-use operations
Various optional mechanisms can be mountedSKU: n/a -
Industrial Machinery, Labeling, Packaging

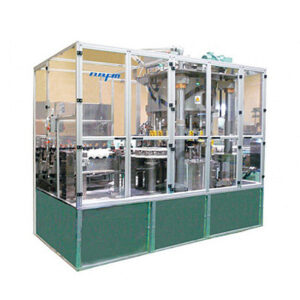

Shrink labeler (rotary type) SL-900S – Nippon Automatic Fine Machinery Co. Ltd
