Waterproof tester WPC8110 – RIGAKU AIHARA SEIKI CO.LTD
High-sensitivity water resistance testers are indispensable for water resistance testing of quartz watches as well as high-end mechanical watches.
This is a waterproof tester for wristwatches using the air-pressure strain measurement method. Equipped with a new type of sensor and control circuit, it has continuous measurement modes of low and high test pressure. Test pressure and strain are displayed digitally for easy viewing. In addition, when the measurement time is set to automatic mode, the optimum measurement time is automatically selected, allowing measurement in a short time. Menu settings are interactive for easy operation.
Specification
| Detection method | Strain measurement method using air pressure |
| Measurement mode | 3 modes / Continuous measurement (SC mode → PC mode), SC or PC alone mode |
| Measurable clock | Approx. 50mm dia. (Capsule inner diameter: 96mm dia.) Thickness: Approx. 18mm |
| Test pressure | WPC8110Ｐ10 : ～1MPa WPC8110Ｐ20 : ～2MPa |
| Leak detection sensitivity | 30 ～ 50 μg/min (but slightly varies depending on detection time and size of the object to be measured) |
| Measurement time | Approx. 70 sec (at initial setting in PC mode) |
| Pressure source | Factory air, compressor, etc. |
| Power source | AC100～240V±10%, 50/60Hz, 20VAmax |
| Display | LCD: Pressure (Bar), Strain (μm) LED lamp: Ready for measurement Judgment (OK/NG) |
| Dimensions (including protrusions) | W220 D320 H240 (mm) |
| Weight | Approx. 8 kg |
Japan’s only manufacturer of “strain detection method” waterproof inspection equipment
Manufacture and sale of measuring instruments for waterproof inspection and testing.
Need more info ?

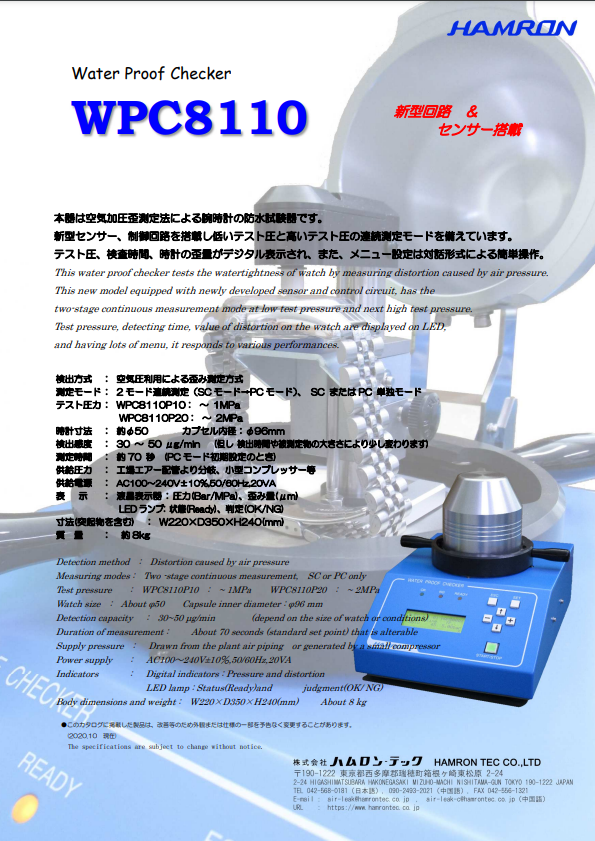

HAMRON Water Proof Checker WPC8110 Catalog
