UP Fuseholders Series – Daito Communication Equipment Co.


Daito’s alarm indicating fuses are highly reliable units proven over many years in mission critical equipment

●Cat.No.

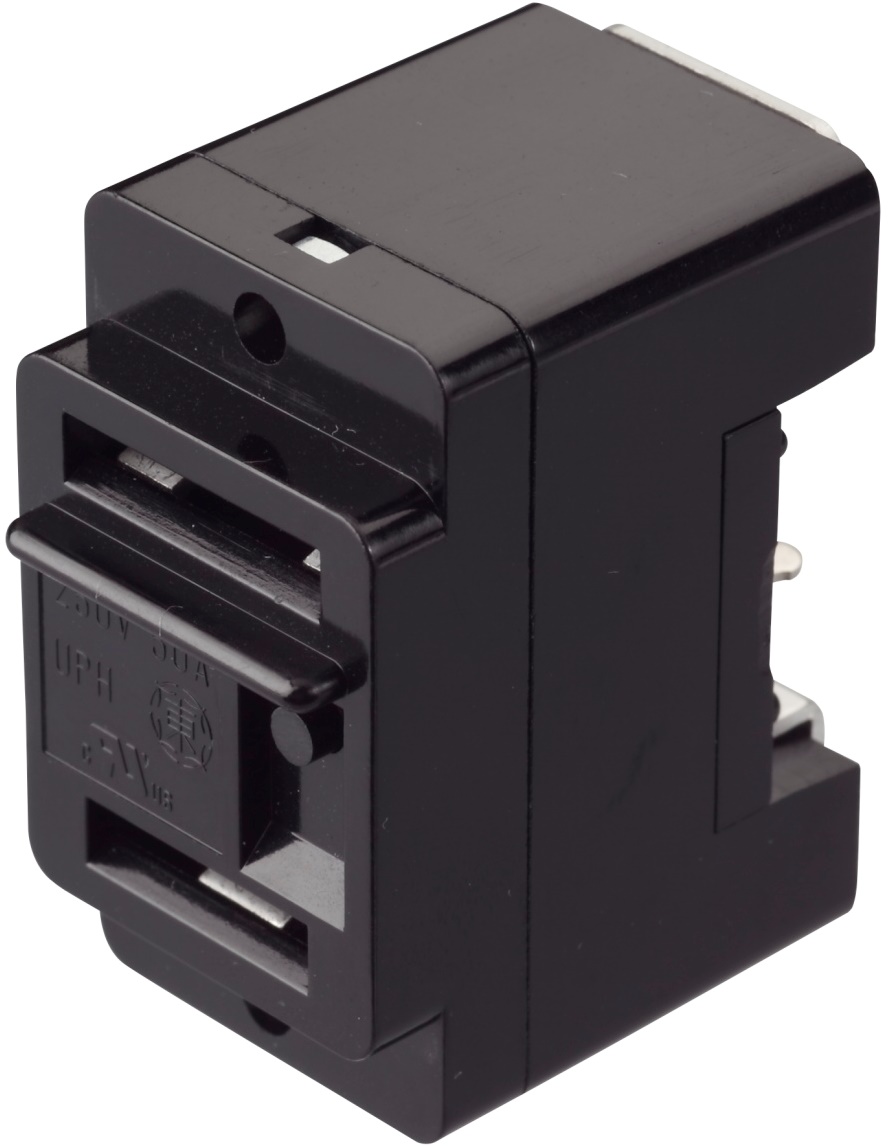

UPH、UPH(Au)

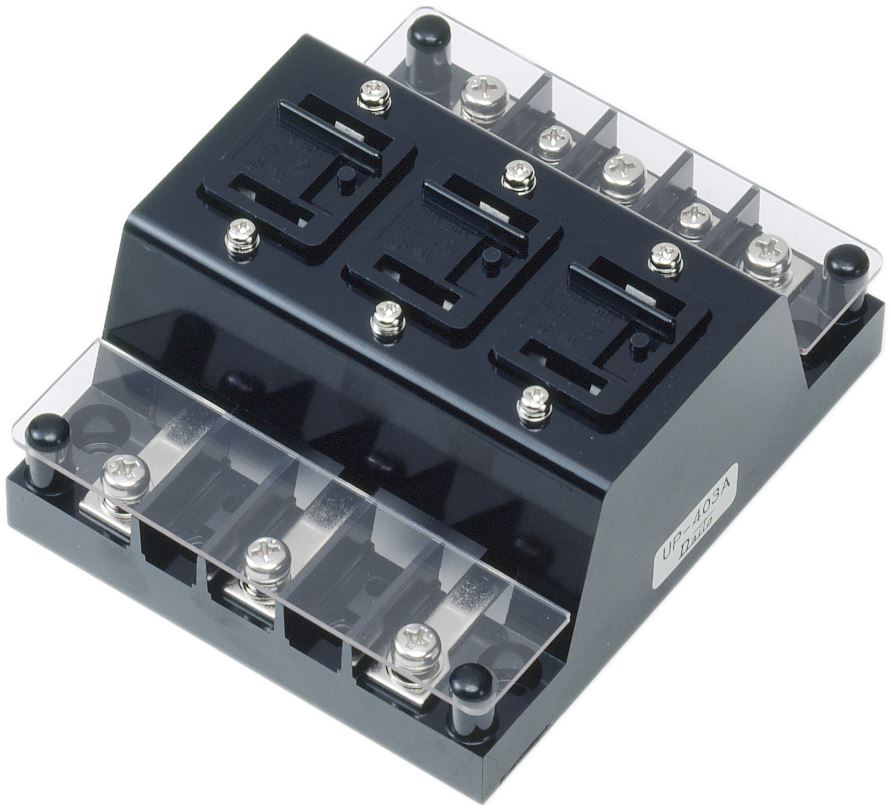

UP-403A :Fuse panel
UPH-4R:Surface mounting type
●Net weight
UPH、UPH(Au):50g
UP-403A :350g
UPH-4R:63g
●Color
Black

Report Abuse

Detail

Cat. No.
UPH,UPH(Au)

Rated Voltage AC/DC 250V

Rated Current 50A

Withstand Voltage
Between alarm terminals AC 1000V 1min
Other AC 1500V 1min

Insulation Resitance
Min. 10M  Ω
at 500VDC

Alarm contact capacity

Capacity 50VA (Resistance load)

Voltage Max. AC 250V/DC 125V

current Max. 5A



Cat. No.
UPH-4R

Rated Voltage AC/DC 250V

Rated Current 50A

Withstand Voltage
Between alarm terminals AC 1000V 1min
Other AC 2000V 1min

Insulation Resitance
Min. 10M  Ω
at 500VDC

Alarm contact capacity

Capacity 50VA (Resistance load)

Voltage Max. AC 250V/DC 125V

current Max. 5A

Manufacture and sales in automobile fuses and related industries.

Daito Communication Equipment Co. manufactures and supplies fuses used in automobiles and industrial robots. Specifically alarm fuses and non-regenerative fuses.

Automotive
Daito have developed fuse for DC circuit since 20 years ago.
Making use of these know-how we are developing some type of fuse for EV/PHEV.

Telecommunication equipment
Fuse for telecommunication equipment is high reliability type that is supporting Japanese infrastructure since estsblishment of Daito.
These are used in PBX, base station for mobile phone, router, disaster prevension radio and many types equipment.

Robot for FA
Fuse for FA market is high reliability type that is continuously used in machine tool, electric discharge machine, injection molding machine, servo motor and many FA equipment.

Railway system
Fuse for railway system is used in master control, door for open and close, vibration control, signal equipment, ticket machine and ticket-vending machine that is needed viblation resistance and rush resistance.

LED light
We have some type of fuse lineups for road light, signal light, large display and light for advertising that is needed high density mounting , small size and high capatiy.

Printer / MFP
We have some type of printer/MFP fuse lineups for IH power supply unit and image processing board that is needed small and high capacity.

Medical equipment
We have some type of medical equipment fuse lineups for X-ray image processing equpment, blood analyzer and nursing bed that is needed varisou shpae, high voltage and current.

Home appliance
We have some type of home appliace fuse lineups for AV equipment as liquid crystal TV and white goods as air-conditioner that is needed varisou shpae, high voltage and current.
