UDW series – Sorters for Food, Industrial and Medical processing – Hattori Seisakusho Co.LTD.
Full color 3CCD camera + Infra Red camera +Shape Recognition Camera for wet food
Washable and Water proof Color Sorter for Wet product. Also designed for easy Sanitizing.

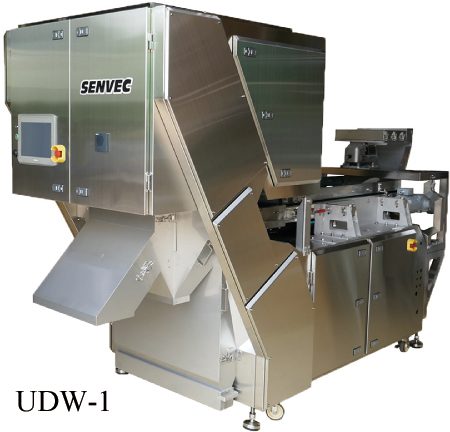

UDW Series
COLOR SORTING MACHINE FOR WET FOOD
UDW-F Series
OPTICAL FOREIGN MATERIAL REMOVER FOR CUT VEGETABLE
Simultaneous Inspection by Full Color CCD cameras, Infra Red camera and Shape recognition camera.
■3CCD color cameras are scanning material from upper and lower side at the same time and detects up to 0.2mm×0.2mm area.
■Optional Infra Red camera can be equipped for detecting same color foreign material.
■In addition to Color / Infra Red cameras, shape recognition camera can be equipped for detecting the defects of size or shape.
■As soon as Camera detects Defect or Foreign Material, Ejector (Air Gun) blows High Pressure Air to reject them.
Easy Sanitizing
■Water proof Camera Cabinet enables washable and easy Sanitizing.
Automatic Sensitivity Set Up
■By Feeding Acceptable product and Defects or Impurity manually, sensitivities are created automatically. Maximum 8 sensitivities can be installed in one program and 99 programs are programmable.
Objects
cut fresh vegetable/ fruit/ baby sardine/ shelled shrimp/ seaweed/ flake salmon/ frozen food
SENVEC sorting machines have gained a reputation as dependable equipment and earned the support of customers around the globe since the invention of the electrostatic sorter and the establishment of our company.
We offer customizations for each of our sorting machine products to suit their respective applications in various fields such as food, medical, and chemical/industrial products. To determine the mechanical and electrical specifications that best meet our customers’ needs, we meticulously test provided samples multiple times. Additionally, we specialize in developing cameras for specific purposes and providing specialized sorting machines to customers who face foreign material contamination issues.
Our extensive experience in the development of sorting machines dates back to 1935 and encompasses a range of technologies, from electrostatic and color sorting to vacuum, visual processing, and optical characteristic sorting. With a wealth of accumulated know-how, we continue to develop new technologies and methods to meet the growing demands for sorting solutions in new fields and for new materials.
We understand the importance of timely service for our customers, and as such, we maintain a global network of 4 domestic branches and 9 overseas agents to provide quick servicing and support, minimizing production downtime even in the event of a breakdown.
Product
Our products are devided into four categories, such as color sorters(sorting by color or optical characters), vacuum suction sorters(sorting by weight), electrostatic sorters(sorting by friction charging phenomena) and sifters(sorting by shape or size), Each product is designed for food. Our products are devided into four categories, such as color sorters(sorting by color or optical characters), vacuum suction sorters(sorting by weight), electrostatic sorters(sorting by friction charging phenomena) and sifters(sorting by shape or size), Each product is designed for food processing, tea processing, industrial purpose and medical processing
