UDR series – Sorters for Food, Industrial and Medical processing – Hattori Seisakusho Co.LTD.
Full color 3CCD camera + Infra Red camera Two stage Sorting
The color sorter for light and indeterminate form spices. Dropping down the steep flat chute, processing the images using the full color 3CCD camera, this sorter precisely screens out foreign material up to the size of 0.2m/m in food.
Flat Chute and CCD camera
■Full Color 3CCD camera detects stalk and foreign material which has different color.
■Infra Red or Chlorophyll detecting Camera detects Foreign Material which has the similar color as good Product.
■High Angle Flat Chute can feed whatever type, shape and weight of Leafy Product smoothly to the Optical Area.
■5mm Ejector Pitch minimizes leaf in the Rejection.
Four Spectrum Analysis
■Full Color CCD camera detects Red, Blue and Green color and High Speed Processor analyses Brightness and Color Phase. The material, which has different Brightness or Color Phase from Product, is rejected.
■Even the Foreign Material has the same color as Product, it is detected by Infra Red or Ultra Violet Camera and rejected.
Easy Operation in Touch Screen
■99 Settings such as Color Sorting Mode, Foreign Material Rejection Mode, Green Tea Mode, Black Tea Mode, are programmable.
■12inch Touch Screen indicates Sensitivity, Feeding Speed and Color Area of Material during Operation.
■All ejectors can be checked manually and automatically in the Ejector Test Mode.
■Brightness of Lamp is monitored and Timing of replacement is indicated.
Objects

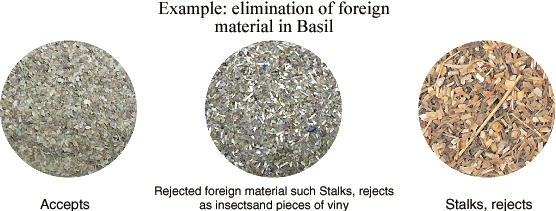

Green laver/ spices/ light and indeterminate foreign material
SENVEC sorting machines have gained a reputation as dependable equipment and earned the support of customers around the globe since the invention of the electrostatic sorter and the establishment of our company.
We offer customizations for each of our sorting machine products to suit their respective applications in various fields such as food, medical, and chemical/industrial products. To determine the mechanical and electrical specifications that best meet our customers’ needs, we meticulously test provided samples multiple times. Additionally, we specialize in developing cameras for specific purposes and providing specialized sorting machines to customers who face foreign material contamination issues.
Our extensive experience in the development of sorting machines dates back to 1935 and encompasses a range of technologies, from electrostatic and color sorting to vacuum, visual processing, and optical characteristic sorting. With a wealth of accumulated know-how, we continue to develop new technologies and methods to meet the growing demands for sorting solutions in new fields and for new materials.
We understand the importance of timely service for our customers, and as such, we maintain a global network of 4 domestic branches and 9 overseas agents to provide quick servicing and support, minimizing production downtime even in the event of a breakdown.
Product
Our products are devided into four categories, such as color sorters(sorting by color or optical characters), vacuum suction sorters(sorting by weight), electrostatic sorters(sorting by friction charging phenomena) and sifters(sorting by shape or size), Each product is designed for food. Our products are devided into four categories, such as color sorters(sorting by color or optical characters), vacuum suction sorters(sorting by weight), electrostatic sorters(sorting by friction charging phenomena) and sifters(sorting by shape or size), Each product is designed for food processing, tea processing, industrial purpose and medical processing
Need more info ?
HATTORI SEISAKUSHO Product Catalog
Hattori Seisakusho Co.,LTD.
Vendor Information
- Store Name: Hattori Seisakusho Co.,LTD.
- Vendor: Hattori Seisakusho Co.,LTD.
-
Address:
611-0022
Kyoto Uji 2, Shirakawa Miyanoushita
-
Food & Beverage Machinery, Fruit & Vegetable Processing Machines, Fruit & Vegetable Sorter, Sorting Equipment
UDB series – Sorters for Food, Industrial and Medical processing – Hattori Seisakusho Co.LTD.
Food & Beverage Machinery, Fruit & Vegetable Processing Machines, Fruit & Vegetable Sorter, Sorting EquipmentUDB series – Sorters for Food, Industrial and Medical processing – Hattori Seisakusho Co.LTD.
Full color 3CCD camera + Infra Red camera Belt Conveyer Feeding
The belt conveyer type color sorters to screen some food which forms are hard to run on the chute. It is possible to screen out pieces of resin, ore or other industrial materials, besides every shape of food.
SKU: n/a -
Food & Beverage Machinery, Fruit & Vegetable Processing Machines, Fruit & Vegetable Sorter, Sorting Equipment
UDR-F/UDR-S series – Color Sorters for Tea – Hattori Seisakusho Co.LTD.
Food & Beverage Machinery, Fruit & Vegetable Processing Machines, Fruit & Vegetable Sorter, Sorting EquipmentUDR-F/UDR-S series – Color Sorters for Tea – Hattori Seisakusho Co.LTD.
Color Sorter for Tea and Herbs Full Color 3CCD camera + Infra Red camera Two stage Sorting
Complying with tea manufacturers’ demand, combined a color sorter and a foreign materials removing into one machine.Equipped a full color CCD camera and an IR camera, this one can screen foreign materials in tea leaves, sort by color and remove red sticks and yellow leaves.
SKU: n/a -
Food & Beverage Machinery, Fruit & Vegetable Processing Machines
Automated Matcha Processing Line – Tea Processing Machines – Hattori Seisakusho Co.LTD.
Food & Beverage Machinery, Fruit & Vegetable Processing MachinesAutomated Matcha Processing Line – Tea Processing Machines – Hattori Seisakusho Co.LTD.
Full Automated Matcha Processing Line.
After drying process, this crushes Tea leaves and removes stalks and leaf vein for making high quality Matcha.
SKU: n/a -
Food & Beverage Machinery, Fruit & Vegetable Processing Machines, Fruit & Vegetable Sorter, Sorting Equipment
UDS series – Sorters for Food, Industrial and Medical processing – Hattori Seisakusho Co.LTD.
Food & Beverage Machinery, Fruit & Vegetable Processing Machines, Fruit & Vegetable Sorter, Sorting EquipmentUDS series – Sorters for Food, Industrial and Medical processing – Hattori Seisakusho Co.LTD.
Full color 3CCD camera + Infra Red camera Single Stage Sorting
The first full color CCD camera type color sorter for cereals in the world. It shows its big ability to sort different colored rejects and foreign material, which was hard with a monochromatic camera.
SKU: n/a -
Food & Beverage Machinery, Fruit & Vegetable Processing Machines, Fruit & Vegetable Sorter, Sorting Equipment
VS-N series – Sorters for Food, Industrial and Medical processing – Hattori Seisakusho Co.LTD.
Food & Beverage Machinery, Fruit & Vegetable Processing Machines, Fruit & Vegetable Sorter, Sorting EquipmentVS-N series – Sorters for Food, Industrial and Medical processing – Hattori Seisakusho Co.LTD.
Vacuum Suction Sorter
Using a perfectly even air flow, this classifies the products into the four categories: heavy, medium, light and dust.
SKU: n/a -
Food & Beverage Machinery, Fruit & Vegetable Processing Machines, Fruit & Vegetable Sorter, Sorting Equipment
FMG-V series – Tea Processing Machines – Hattori Seisakusho Co.LTD.
Food & Beverage Machinery, Fruit & Vegetable Processing Machines, Fruit & Vegetable Sorter, Sorting EquipmentFMG-V series – Tea Processing Machines – Hattori Seisakusho Co.LTD.
Optical Foreign Material Remover For Green Tea
Specially designed Super high sensitive CCD Camera detects fluorescence of Chlorophyll in Green Tea and detects foreign material.
SKU: n/a
