Spiral Elevator Vibro Lift – URAS TECHNO CO. LTD.

Compare

The Vibro Lift has a small footprint and is useful for cooling materials while conveying vertically.

The “Vibro Lift” utilizes two Uras Vibrators to generate a rotational vibration which transports materials upwards through a helical trough. It occupies minimal space and is easy to clean. The expansive surface area of the trough makes it suitable for cooling, heating, drying, or cleaning materials. An optional water jacket beneath the trough makes it an ideal tool for cooling.

Advantages

  • Vertical conveying of materials.
  • Compact footprint.
  • Useful for heating, cooling, drying, and cleaning conveyed materials.

Primary Applications

  • Cooling and vertical conveying of PVC pellets, rubber pellets, and ferrite powder, as well as heating of flour.

Materials that can be Handled

  • Alumina Metal Powder
  • Dolomite
  • Flour
  • Limestone
  • Oil Seals
  • Rare Earth Elements
  • Resin Pellets
  • Rubber Pellets
  • Seaweed

Primary Users

  • Automotive
  • Ceramics
  • Chemical
  • Food
  • Precision Industries

Standard Specifications

  • Model: YULP-15010SW
  • Trough Dimensions (mm): 150
  • Lifting Height (mm): 1000
  • Handling Capacity* (kg/h): 750
  • Model: YULP-20015SW
  • Trough Dimensions (mm): 200
  • Lifting Height (mm): 1500
  • Handling Capacity* (kg
Categories: , , ,
URAS TECHNO CO., LTD.
URAS TECHNO CO., LTD.

As a creative engineering sales company,
our mission is to use “Powtronics” to respond to our customers’various goals and needs.

Uras Techno is the successor of YASKAWA & CO.,LTD., which was established as an independent sales entity when it split off from Yaskawa Electric Corporation in 1960. When YASKAWA & CO.,LTD. Was established, the original president, Hiroshi Yaskawa, made it their main mission to introduce unique and well-engineered electric motor and controller driven machinery to the world. Among this machinery were the Uras Vibrator and vibratory and powder handling equipment using the Uras Vibrator.

In 2000, Uras Techno was formed when YASKAWA & CO.,LTD. was closed as part of the structural reorganization of Yaskawa Electric Corporation. However, the original spirit of YASKAWA & CO.,LTD. was not forgotten. Uras Techno continues to develop its engineering of unique vibration applications. In particular, we work to provide our customers with engineering solutions based on “Powtronics” (a combination of “Powder” and “Electronics”) , originally developed by YASKAWA & CO.,LTD.

While Uras Techno is financially backed by Murakami Seiki Mfg. Co.,Ltd. and Yaskawa Electric Corporation, with regards to management we conduct business as an independent corporation. We work in close cooperation with Murakami Seiki Mfg. Co.,Ltd. and their subsidiary, Kobayakawa Foundry, continuing to strengthen our bonds with them, and solidify partnerships with distributors, makers, and other affiliated businesses, in order to build upon the foundation of Powtronics and further increase our ability to respond to our customers’ needs.

At Uras Techno, we strive to cultivate healthy partnerships between employee and employee, company and employee, and between companies in order to promote the prosperity of our customers and partner companies, and contribute to the development of society and humanity.

Need more info ?

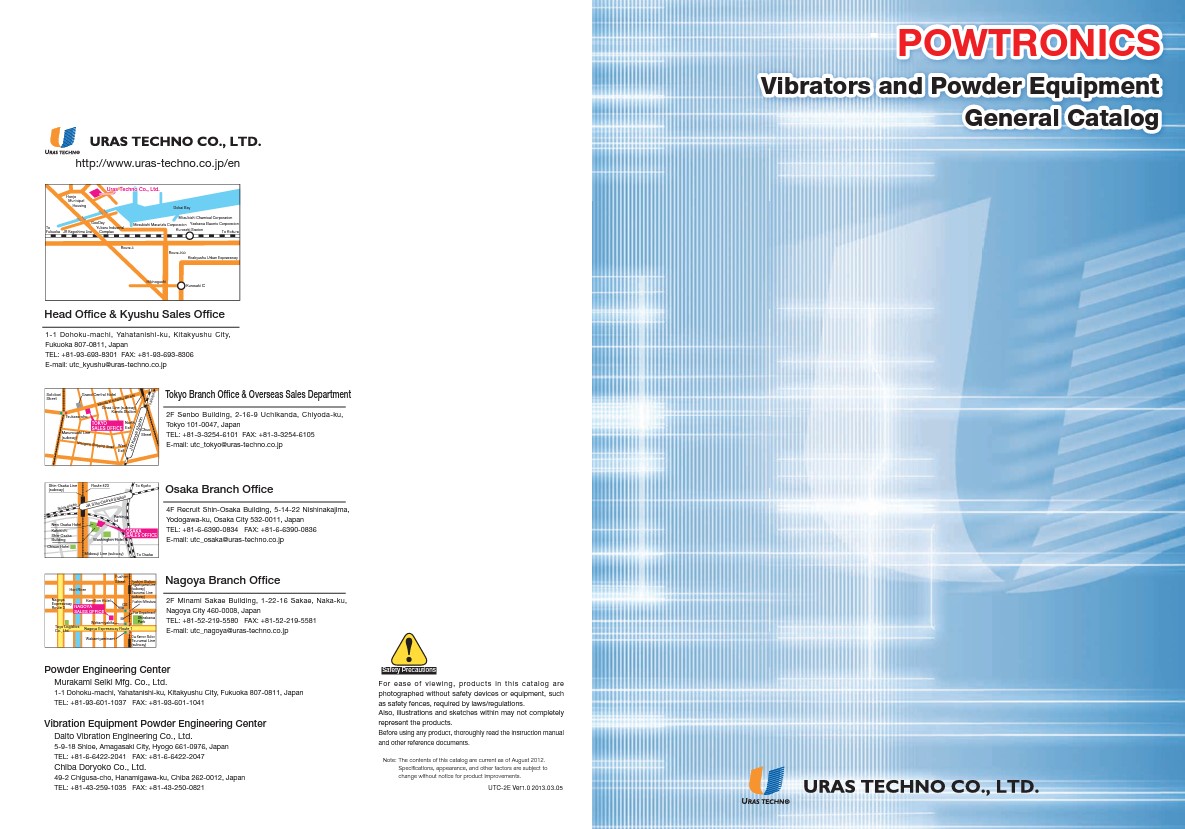

Vibrators and Powder Equipment General Catalog
