Planetary Centrifugal Vacuum Mixer THINKY Mixer ARV-5000 – THINKY CORPORATION

Compare

Large model that handles large capacity of maximum 3L and achieves deaeration at the submicron level

・Large capacity of 3L・5kg.
・No spillage over of materials during operation because the optimal recipe for material can be set.
・Optimal setting according to materials is possible by changing the number of rotations.
・Excellent operability with a touch panel.
・Equipped with cooling function by rotation
・Various containers are supported

Features

The machine has performance of 3L/5kg of mixing, dispersion, and deaeration (degassing) for application for mass production. The large chamber can mix and deaerate large amounts to increase efficiency at manufacturing levels. With the combination of vacuum technology, high viscosity materials can be deaerated completely at submicron levels.

Specification

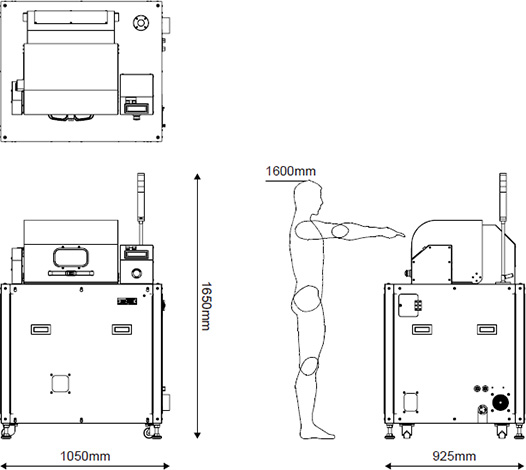

Unit Dimensions/ Unit weight H 1,650 × W 1,050 × D 925 (mm) / Approx. 500 kg
Maximum Capacity*1 5 kg
Standard Container*2 4 liter resin container
Power Supply Voltage: Three-phase AC 200 V ± 10 %, 50/60 Hz
Power consumption: Approx. 35 VA (standby) Max 4500 VA (operation)
Accessories Instruction Manual × 1, Power cable × 1, Containers and others: Depending on specifications, Vacuum tube × 1 pair, Vacuum pump oil, Others (depending on specifications)
Option External host communication function
