Optical Micrometer – Five Lab Co. Ltd.

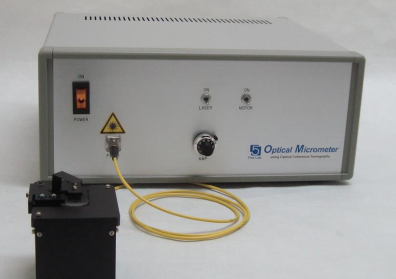

The Optical Micrometer is a non-contact, non-destructive tomographic measurement device using Michelson interferometry.
Optical micrometers are devices that irradiate light onto a sample, detect the return light from the surface, interior, and back surface, and measure the distance between each return light. Since it is a reflection measurement, it has a high degree of freedom and is non-contact. If the sample is transparent to the measurement light, the internal state and sample thickness can be easily measured.
Features
1) Non-contact and no damage to the sample
No damage to the sample.
2) Reflectance measurement, so only one side of the sample is measured.
High degree of freedom of measurement, thickness and internal measurement are also possible if the sample is a transparent sample.
3) High-speed measurement – Measurement is performed at 25 Hz.
4) Use of fiber interference system
Compact and vibration-resistant, ideal for on-site use
Stability
S-BSL7(OHARA) This is an example of continuous measurement of a flat plate of t=1.010mm for 5 hours. The positions of the beat signals on the top and bottom surfaces of the sample vary by ±20 μm due to the influence of room temperature.
The position of the beat signals on the top and bottom surfaces of the sample fluctuates about ±20 μm due to the influence of room temperature, but the signal spacing (sample thickness) is stable within ±1 μm.
Reproducibility
This is an example of measurement reproducibility of a flat plate of S-BSL7(OHARA) t=1.010mm and 2.000mm, measured 10 times.
(Samples were set and measured at 20-minute intervals each time.) It can be confirmed that the range is within ±1μm stably.
Example of non-contact, micro-area measurement
The measurement light beam diameter of the optical micrometer is The parallel beam diameter is Φ0.8mm and the focused beam diameter is 0.03mm, allowing accurate measurement of the thickness of micro concavo-convex lenses, which are usually difficult to measure, without damaging the lens.
Specification
| Measurement wavelength | 1.3μm |
|---|---|
| Measurable range | 0.02~18mm (refractive index n=1) |
| Position resolution | 1.0μm or less |
| Measurement repeatability | ±1μm |
| Measurement frequency | 25Hz |
| Measuring beam diameter | Parallel beam Φ0.8mm |
| Focusing beam diameter | Φ0.03mm |
| Dimensions | 330w x 290d x 140h mm |
| Measurement probe | Not included |
| Power supply | 100V 1A 50/60Hz |
When You think You need something like this, and You want to make something like this, please inquire for us.
Activities
(1)Design,manufacturing,and sales of optical apparatus and device
(2)Design,manufacturing,and sales of electronic optical measurement
(3)Manufacturing,sales,and importing and exporting of optical machine
apparatus and optical machine apparatus including poisonoum substance
Need more info ?

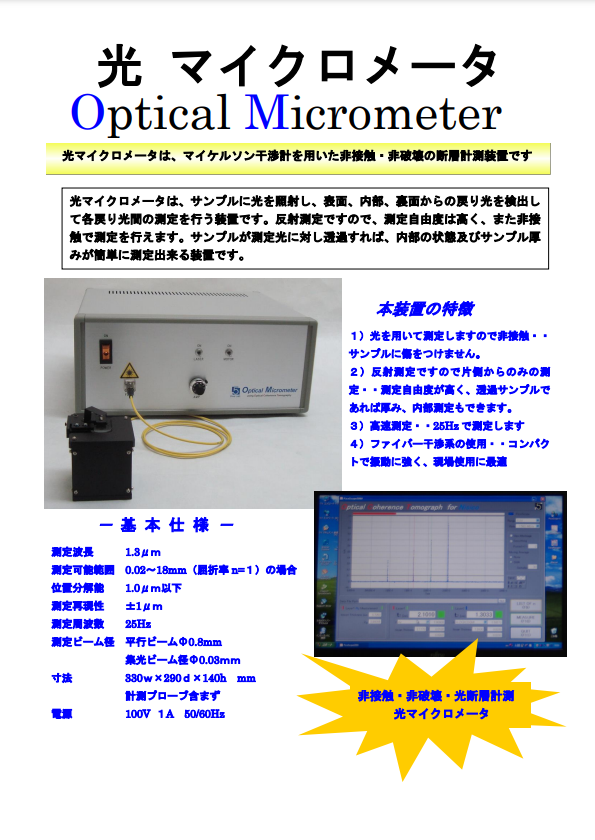

Optical Micrometer Catalog
Five Lab Co., Ltd.
Vendor Information
- Store Name: Five Lab Co., Ltd.
- Vendor: Five Lab Co., Ltd.
-
Address:
227-0067
Kanagawa Yokohama Matsukazedai
-
Lab Supplies, Other Lab Supplies, Testing Instrument & Equipment
Ultra-compact Ellipsometer MACO-101 – Five Lab Co. Ltd.
Lab Supplies, Other Lab Supplies, Testing Instrument & EquipmentUltra-compact Ellipsometer MACO-101 – Five Lab Co. Ltd.
Compact size, lower price, higher accuracy and user friendly software.
Ellipsometer is optical instruments which measure the change in polarization state of light beam upon reflection from a sample surface to analyze the film thickness, the optical constants as the refractive index / absorption, or the optical constants of bulk materials.
SKU: n/a -
Electronic Components, Sensor

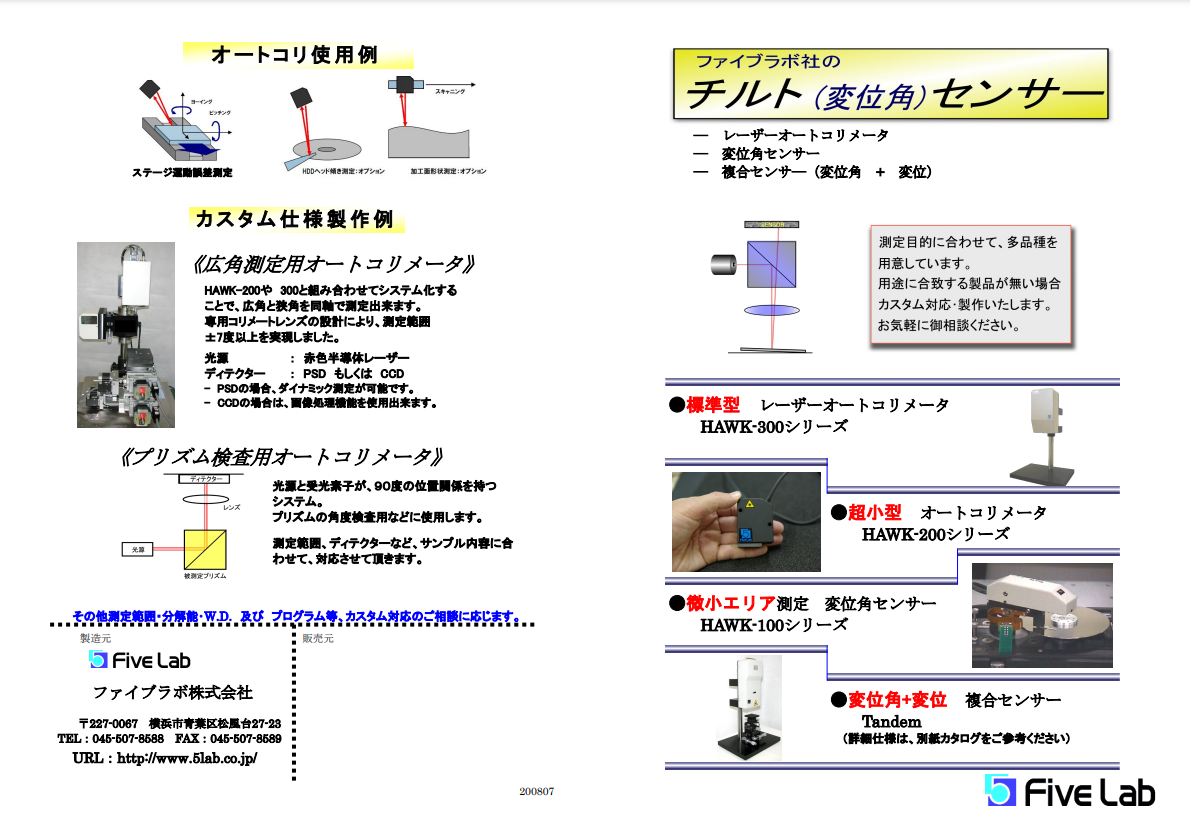

Ultra-compact/ultra-high Resolution Laser Autocollimator HAWK-200 Series – Five Lab Co. Ltd.
Electronic Components, SensorUltra-compact/ultra-high Resolution Laser Autocollimator HAWK-200 Series – Five Lab Co. Ltd.
Ultra-compact/ultra-high resolution laser autocollimator.
HAWK-204
The HAWK-204 is a compact head with a unique optical system that achieves high detection speed and high resolution while maintaining a compact head.HAWK-203
The HAWK-203 is a compact sensor that can be incorporated into various types of equipment.
Despite its small size, the sensor comes with a microscope function, allowing the user to check the measurement position.
Image processing software can be used by connecting to a PC.HAWK-202
HAWK-202 is a 2-axis laser autocollimator using two 2-segment photodiodes. High resolution is realized by our original optical system. (Currently under prototype production)SKU: n/a -
Lab Supplies, Other Lab Supplies, Testing Instrument & Equipment
Automatic Ellipsometer MARY-102 – Five Lab Co. Ltd.
Lab Supplies, Other Lab Supplies, Testing Instrument & EquipmentAutomatic Ellipsometer MARY-102 – Five Lab Co. Ltd.
Compact size, lower price, higher accuracy and user friendly software.
Ellipsometer is optical instruments which measure the change in polarization state of light beam upon reflection from a sample surface to analyze the film thickness, the optical constants as the refractive index / absorption, or the optical constants of bulk materials.
SKU: n/a -
Electrical Measuring Instruments, Measuring Instruments, Testing Instrument & Equipment

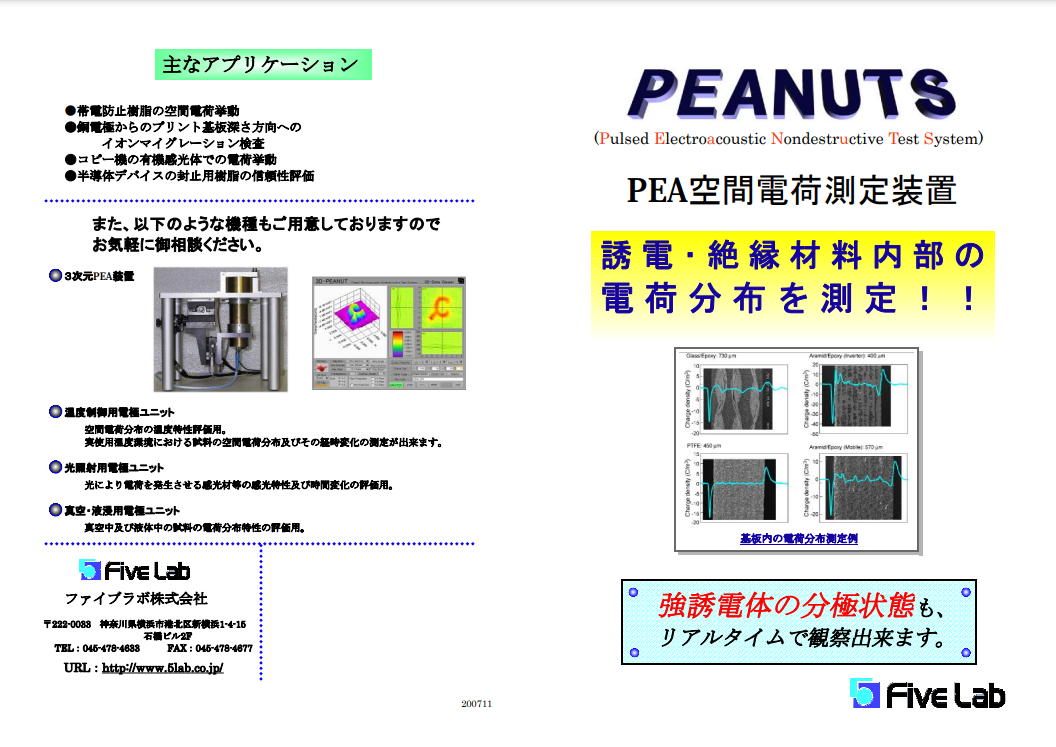

PEA Space Charge Analyzer PEANUTS – Five Lab Co. Ltd.
Electrical Measuring Instruments, Measuring Instruments, Testing Instrument & EquipmentPEA Space Charge Analyzer PEANUTS – Five Lab Co. Ltd.
Measure charge distribution inside dielectric/insulating materials ! !
Main Applications
Space charge behavior of antistatic resins
Ion migration inspection from copper electrodes to printed circuit board depth
Charge behavior in organic photoconductors of copiers
Reliability evaluation of resin for encapsulation of semiconductor devicesSKU: n/a -
Electronic Components, Sensor

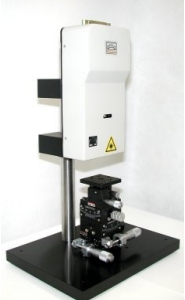

Standard Laser Autocollimator HAWK-300 Series – Five Lab Co. Ltd.
