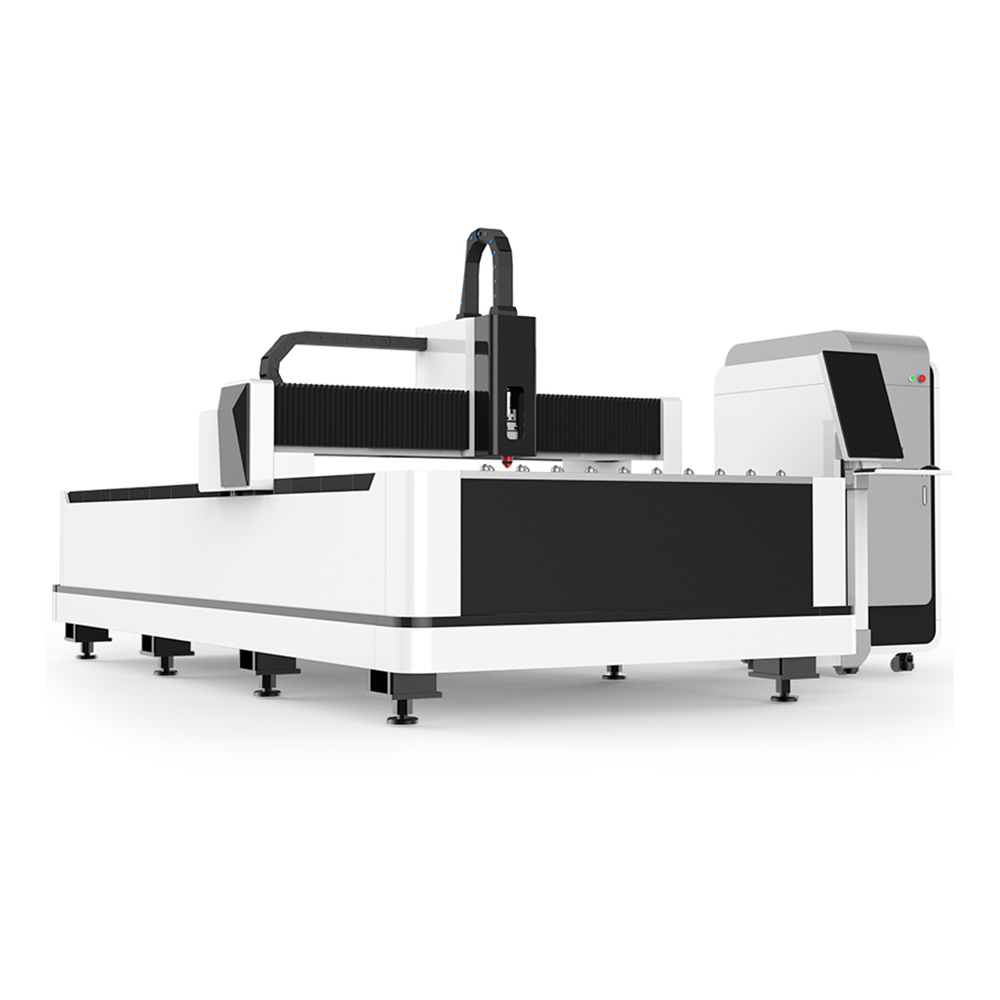

Fiber laser processing machine FL3015LN
, ,

Fiber laser processing machine FL3015LN – RSD Co. Ltd

Compare

Fiber laser cutting machines that emphasize ease of use.

Medium power models such as the FL3015LN are fiber laser cutting machines that emphasize a large work area and ease of use. They are also easy to customize and are used to manufacture a wide range of items.

Specifications

Model RSD-SUNMAX-FL3015LN
Dimensions [mm] 4440 × 2500 × 1860
Laser Type Fiber laser
(IPG or Raycus or RECI oscillator)
High Reflective Material Yes
Laser Output (1000)/ 1500 / 2000 / 3000 / 4000W
RECI: 1500W～
Wavelength 1090 [nm]
Processing Area [mm] 3000 × 1500 / 4500 × 1500
Max Speed [m/min] 80
Max Acceleration [G] 1
Voltage AC220V/50Hz/60Hz/60A
Positioning Accuracy [mm] ±0.02
Import File Formats DXF, PLT, AI, Gerber, NC (G-code)
Follow (Imitation Sensor) Automatic calibration available
Control Software CypCut
Auto Focus Yes
Dynamic adjustment of focal distance during processing, effective when working with different materials.
*Optional for 1000W machines, available for all models.
If there is no auto focus, manual adjustment of the focal distance is required based on the material being processed.
Default installation may vary by machine specifications; check with inquiries for details.
Collision Avoidance Yes
Function to avoid obstacles such as remaining processed material in a tilted state after cutting, allowing continuous processing.
*Optional, available for all models.
Default installation may vary by machine specifications; check with inquiries for details.
Control Unit Command Unit: 0.001mm or less
Command Method: G-code/M-code
Program Transfer Method: USB
*Internet connection is prohibited
Operating Device Color 10.4 inches or more.
Keyboard, Mouse, Remote Control
Touch panel is optional
Dual Rack Gear Germany YYC
Speed Reducer France Motovario
Motor China inovance
Installation Space Requirements A minimum clearance of 1.5m or more is required on all sides in relation to the main unit dimensions
Options
  • FL4515L upgrade available. FL4515L has the same structure but a different appearance.
  • Convertible to a tube processing machine. = LNR series. Tube length is 3 meters or 6 meters. Tube diameter is φ240mm or φ280mm.
  • 1500W and above come with standard auto-focus. For 1000W below, auto-focus is optional. Pre-application is required for auto-focus under 1000W.
  • Servo motors are standard inovance. Optionally, change to Yaskawa motors.
  • Collision avoidance cutting function (Avoidance of laser head contact) can be upgraded as an option.
  • It is possible to add a cooling function to the laser head.

Main components included in the product

Simple autofocus, no manual operation required

Dedicated software automatically adjusts the focus lens and performs automatic drilling and cutting even on plates of different thicknesses. The speed of automatic focus lens adjustment is 10 times faster than manual adjustment.

Greater Adjustment Range

Adjustment range -10mm to +10mm, accuracy 0.01mm, suitable for different types of plates from 0 to 20mm.

Long product life

Both collimator and focus lenses have water-cooled heat sinks, which reduce cutting head temperature and increase cutting head life.

a8991add364dd939c20a465dde87b0ce
3cee3be24765cc650450bd3b9ab90b3f

Aerospace Aluminum Gantry

Manufactured to aerospace standards and formed by 4300 ton press extrusion. Strength after aging can reach T6, the maximum strength of all gantries. Aviation aluminum offers many advantages such as good toughness, light weight, corrosion resistance, oxidation protection, low density, and much faster processing speed.

Automatic water cooler

Cools the laser head, including the focal lens.
This automatic water cooler uses a stainless steel circulation pump with high flow rate and low noise, and the tank and pipes are made of rust-free materials to ensure stable water pressure and long service life.

HL3000
197290ef29d987dc0a962c4c5ec3c902

Double rail design on both sides

To prevent deformation of the cut line due to thread bending of the Y-axis and to ensure stable high-speed cutting of straight lines and arcs, the Y-axis on both sides is equipped with two rail guides and double ball drive screws.

Fiber Laser Controller BCS100

This high-performance controller employs a closed-loop control system.
Equipped with a unique Ethernet communication (TCP / IP protocol) interface, many functions can be easily realized with CypCut, such as automatic height tracking, segment piercing, progressive piercing, edge seeking, jump over, and arbitrary setting of lift-up height.
The BSC100 operation panel may or may not be equipped depending on specifications.

bcs100

Composition

Wrothing / Raytool cutting head. Japan YASKAWA servo. Taiwan HIWIN Guide Linear, Taiwan YYC Rack Gear, Japan SMC / AIRTEC Pneumatic Components. France Motovoria reducers, France Schneider electronic components. Cypcut Controller

Machining Samples

Processing Sample Video
