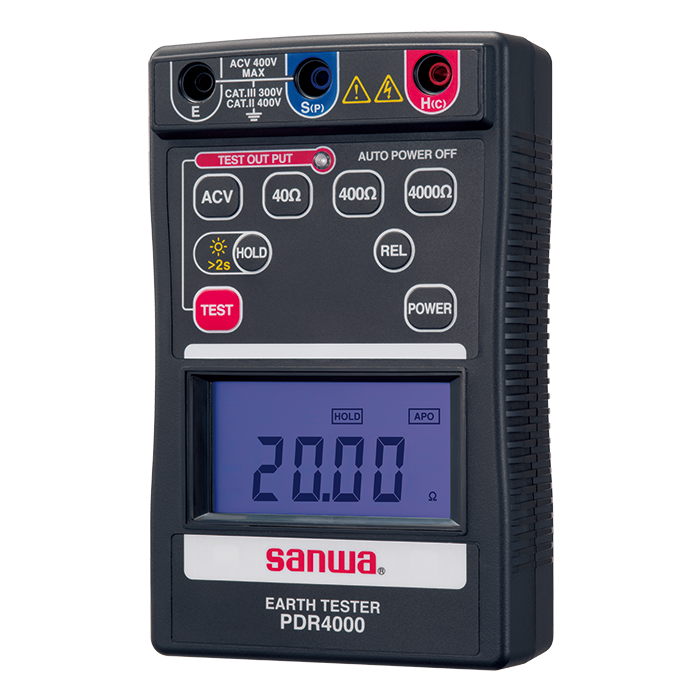

DIGITAL EARTH TESTER PDR4000 – Sanwa Electric Instrument Co. Ltd.
Easy to read with backlight
・Three measurement ranges: 40Ω, 400Ω, 4000Ω
・3-pole/2-pole earth resistance measurement
(Optional accessory TL-68 is necessary for 2-pole measurement.)
・Auto power off (10 min./Cancelable)
・Capable of measuring interference voltage
・2mA measuring current
Features
Auto power off
Power is automatically turned off when a certain time has elapsed after power-up. Some models have a function to cancel this function.
Data hold
A value indicated on the display is fixed. It is fixed even after the test lead is removed, and can be used as a record for reference purposes.
Measurement of relative value
A certain measured value is assumed as 0 and measured values after that are expressed by positive or negative values relative the value fixed as 0.
Backlight
Allows indicator reading in a dark place.
Speicifications
| Measuring range | Accuracy | |
|---|---|---|
| Earth resistance | 40Ω | 0.00-10.00Ω ±(2%+10) 10.01-40.00Ω ±(2%+3) |
| 400Ω | 0.0-400.0Ω ±(2%+3) | |
| 4000Ω | 0-3000Ω ±(2%+3) | |
| ACV | 0-400V | ±(2%+3) |
| Measuring system | Constant current inverter 820Hz Approx. 2mA | |
| Battery | R6P(AA battery) 1.5Vx6 | |
| Size/Mass | H163×W102×D50mm/Approx. 440g | |
Measurements only become meaningful when there is confidence in the accuracy and the quality of the instruments being used.
Sanwa’s mission is to deliver unique measuring instruments to its customers. Placing customer trust and satisfaction first and foremost, Sanwa works to contribute to global environmental conservation and energy management through the continuous evolution of electrical and on-site measuring instruments.
Need more info ?
DIGITAL EARTH TESTER PDR4000 Catalog
