Control panel cooling unit
, ,

Control panel cooling unit : HFC Alternative gas & Energy saving models ENC-GR-eco series – Apiste Corporation

Compare

High-grade SUS body specs.

For control panel cooling units, HFC-alternative is the future.
With that in mind, Apiste has added non-drain, down-flow, and
100V models for a complete lineup for any situation. Now,our customers can choose from a lineup meeting every need.

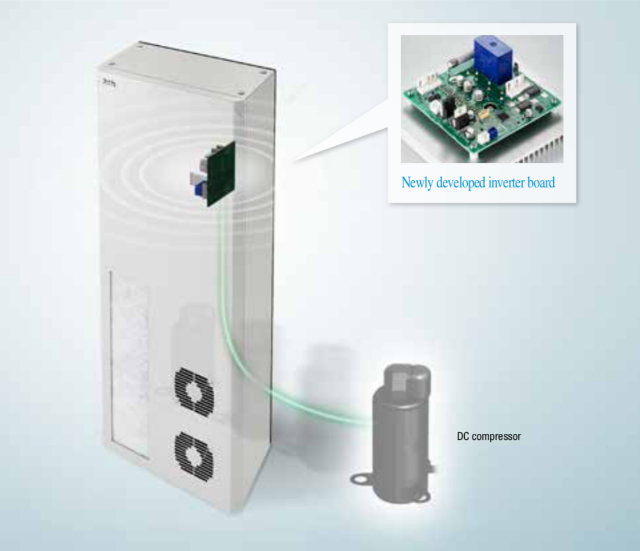

Energy saving model Inverter control cooling only as much as needed.

While ON/OFF control has been adopted for existing series, with ENC-GR-eco series, compressor and fan in which DC motor is incorporated are controlled by inverter. Not running at full power until reaching 100% load ratio reduces running costs. Moreover, the temperature does not change when if worksnormally like as ON/OFF control, so the stress on an electric device can be reduced.

Toughness For longer service life.

All models respond to high-temperature environment (MAX55°C) is ensured.

All models respond to high-temperature environment (MAX55°C) is ensured by controlling the temperature of compressor head. DC compressor and self-developed inverter control the number of revolutions to suppress the temperature rise of compressor under hightemperature environment. The cooling operation is enabled under high-temperature environment where the protection function of an existing constant-velocity compressor has functioned to stop cooling.

Highly durable radiator fan Abolishment of contact relay equivalent to IP68.

Long-life DC fan equivalent to IP68 provides long-time reassurance.

Surface coated board

Reduces risk of short circuit due to harsh enviroment matters such as powder dust and oil mist.

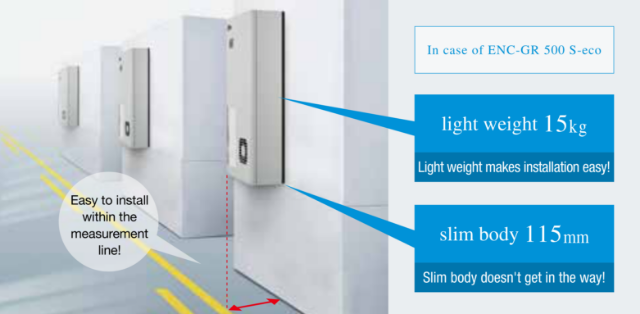

Light weight • Slim body Easy to install & Space saving

Reduces weight up to 32% compared to previous models.

Our lineup now includes non-fl on-gas models up to 32% lighter and slimmer than previous models. Non-freon-gas models reduce concerns about control panel strength and also reduce the time and labor needed for installation. What’s more, a slimmed down depth minimizes the unit’s protrusion from the control panel, making installation in tight places practical.

Slim version limited to certain models.

Global standard Safe operation anywhere in the world.

200-240V free power source & CE / UL / CCC

To meet the growing number of regional standards, the ENC-GR-eco Series features a 200-240V free power source compatible with CE/UL/CCC global standards. The ENCGR-eco Series is the perfect solution when setting up the same Japanese manufacturing line overseas or when moving Japanese equipment overseas. With the ENC-GR-eco Series, you no longer need to do troublesome research to find the right model.
* CE only for 100V models

Usability Easy to use

QR code provides quick access to the model and manufacturing serial number.

Read the QR-code to quickly get the model and manufacturing serial number. Read the QR-code to quickly fi nd control panel cooler registration, maintenance, and other product information.

Dry mode

The cooling mode of the ENC-GR-eco Series features a dry mode that can be switched on when operating in humid locations or climates.

Drain water volume benchmark
Operation mode GR500S-eco GR500L-eco GR1000L-eco GR1500L-eco GR2000L-eco GR2500L-eco
Stable cooling operation 217 147 345 752 1176 1133
Dry mode 348 340 656 1108 1704 1972
Drain increase (%) 60% 131% 90% 47% 45% 74%



Operation mode GR500EX-eco GR1000EX-eco GR1500EX-eco GR2000EX-eco GR2500EX-eco
Stable cooling operation 204 246 851 1089 1266
Dry mode 372 604 1153 1613 2045
Drain increase (%) 82% 146% 35% 48% 62%
