Chip Compressor SPS-25HYR – SAN-AI ECO SYSTEM Co.Ltd.
Not only compression and volume reduction, but also cutting fluid attached to chips can be recovered!
Chips are compressed and solidified, squeezing and removing adhered cutting fluid during compaction. It is ideal for processing machines and real-time processing of 1 x 1.

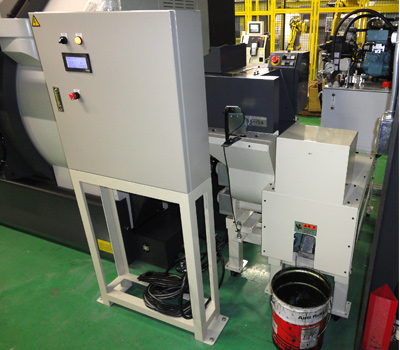

[Chip processing installation example]
Solidification and volume reduction of chips, removal of adhered fluid by compression, processing of iron, aluminum, cast iron, SUS, etc., and expansion of functionality by combining with peripheral equipment.
Features
- 1 x 1 stand-alone installation with processing machine.
- Interlocking operation with processing machine conveyor.
- Ideal for installation on unmanned processing lines.
- Expandable functionality by combining with peripheral devices.
Reference Images
Before
After Treatment
Specifications
| Model | Main Dimensions | Weight |
|---|---|---|
| SPS-25HYR | Ｌ1450×Ｗ920×Ｈ①1580×H②1060 | 650ｋｇ |
Primary supply power AC200V 50/60Hz
Control voltage AC200V 50/60Hz
Control panel enclosure drainage dustproof specification Enclosure dimensions: W600 x H700 x D200 Paint color: 5Y7/1 (both inside and outside)
Compression cylinder thrust 25T
Hydraulic pump capacity 2.2kw
Hydraulic pump pressure 21Mpa
Recommended hydraulic oil #VG46 (60 liters)
Hydraulic oil cooling pump drain type (air cooled cooler)
Basic Performance
- Operating Specifications
- External operation mounting earth leakage breaker (30mA)
- PLC Mitsubishi Electric Fx-1s sequencer (5DM display can be installed)
- Equipped with touch panel for operation mode selection
- Automatic operation, manual individual operation, optional selection
- Emergency stop push-lock button
- Interlocking operation by external signal input/output
*Special specifications other than those listed above, such as those specified by the user, are also available.
Option
*Not included in the main unit price
Hopper door open/close sensor / electrical specifications specified by customer / other safety measures / paint color specified by customer / power cable / installation work, etc.
Specifications may vary greatly depending on installation site conditions, etc. Please consult our sales representative for details.
Creativity & Challenge
Creation and Challenge” has been our company motto since the founding of San’ai Eco-System and our guiding principle for the future. While doing what we take for granted, we will continue to search for new things and aim to “create products that are needed and companies that are needed”.
Address
260-57 Hase, Atsugi-shi, Kanagawa 243-0036, Japan
Need more info ?
San-Ai Eco System Product Catalog
SAN-AI ECO SYSTEM Co.,Ltd.
| Use Cases | |
|---|---|
| Product Type |
Vendor Information
- Store Name: SAN-AI ECO SYSTEM Co.,Ltd.
- Vendor: SAN-AI ECO SYSTEM Co.,Ltd.
-
Address:
243-0036
Kanagawa Atsugi 260-57
Hase
-
Industrial Machinery, Metal & Metallurgy Machinery, Scrap Metal Recycling Equipment, Scrap Metal Shredders
Chip crusher SSCL-075 – SAN-AI ECO SYSTEM Co.Ltd.
Industrial Machinery, Metal & Metallurgy Machinery, Scrap Metal Recycling Equipment, Scrap Metal ShreddersChip crusher SSCL-075 – SAN-AI ECO SYSTEM Co.Ltd.
The use of split-type rotary crushing blades reduces running costs!
The crusher can be directly mounted on the conveyor of a small lathe.
For installation, an example is cutting process by NC lathe, permanent chip of iron forging material, and 1 x 1 installed to the processing machine. After crushing, the chips are transferred to a chip cart and linked operation with conveyor is possible.SKU: n/a -
Industrial Machinery, Metal & Metallurgy Machinery, Other Scrap Metal Recycling Equipment, Scrap Metal Recycling Equipment
Chip Compressor SPS-40HYR – SAN-AI ECO SYSTEM Co.Ltd.
Industrial Machinery, Metal & Metallurgy Machinery, Other Scrap Metal Recycling Equipment, Scrap Metal Recycling EquipmentChip Compressor SPS-40HYR – SAN-AI ECO SYSTEM Co.Ltd.
Not only compression and volume reduction, but also cutting fluid attached to chips can be recovered!
Compression and consolidation of various chips such as iron, stainless steel, aluminum, etc.! Compressor also capable of badge processing!
Installation Examples:
Consolidation and volume reduction of iron chips;
Badge processing through manual input;
Enhance functionality by combining with peripheral equipment;
Consolidated chips are discharged into drums;
Removal of adhered liquid through compression;
Collected cutting fluid is automatically collected.SKU: n/a -
Industrial Machinery, Metal & Metallurgy Machinery, Scrap Metal Recycling Equipment, Scrap Metal Shredders
Chip crusher SBD-075 – SAN-AI ECO SYSTEM Co.Ltd.
Industrial Machinery, Metal & Metallurgy Machinery, Scrap Metal Recycling Equipment, Scrap Metal ShreddersChip crusher SBD-075 – SAN-AI ECO SYSTEM Co.Ltd.
Realization of response to foreign material contamination!
It can process chips mixed with end material from bar top cutting, which was previously thought to be unprocessable.
Installation Example
Chips mixed with foreign matter can also be processed.
NC lathe cutting process
Direct installation on a conveyor
1 x 1 installation for processing machine
Crushing allows for conveyor transfer
Link operation with conveyor is possible.SKU: n/a -
Industrial Machinery, Metal & Metallurgy Machinery, Scrap Metal Recycling Equipment, Scrap Metal Shredders

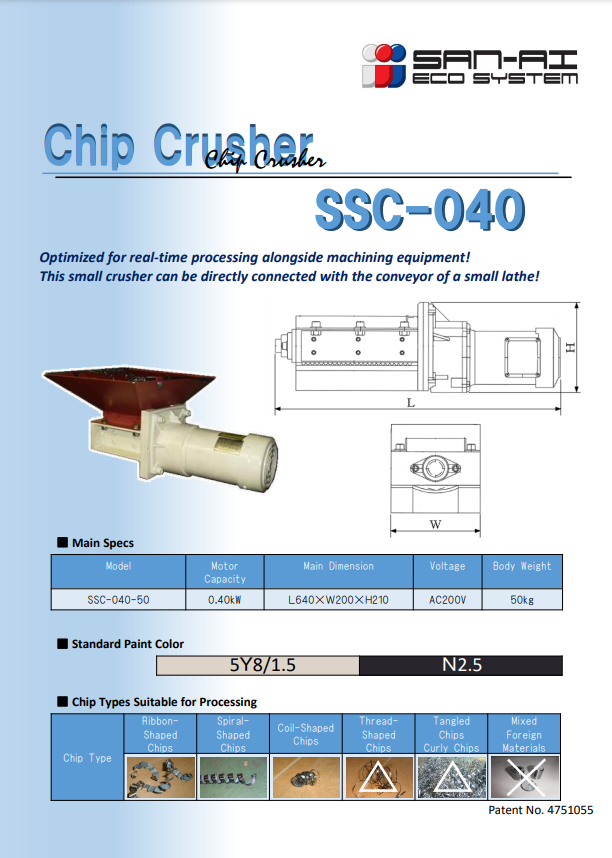

Chip crusher SSC-040 – SAN-AI ECO SYSTEM Co.Ltd.
